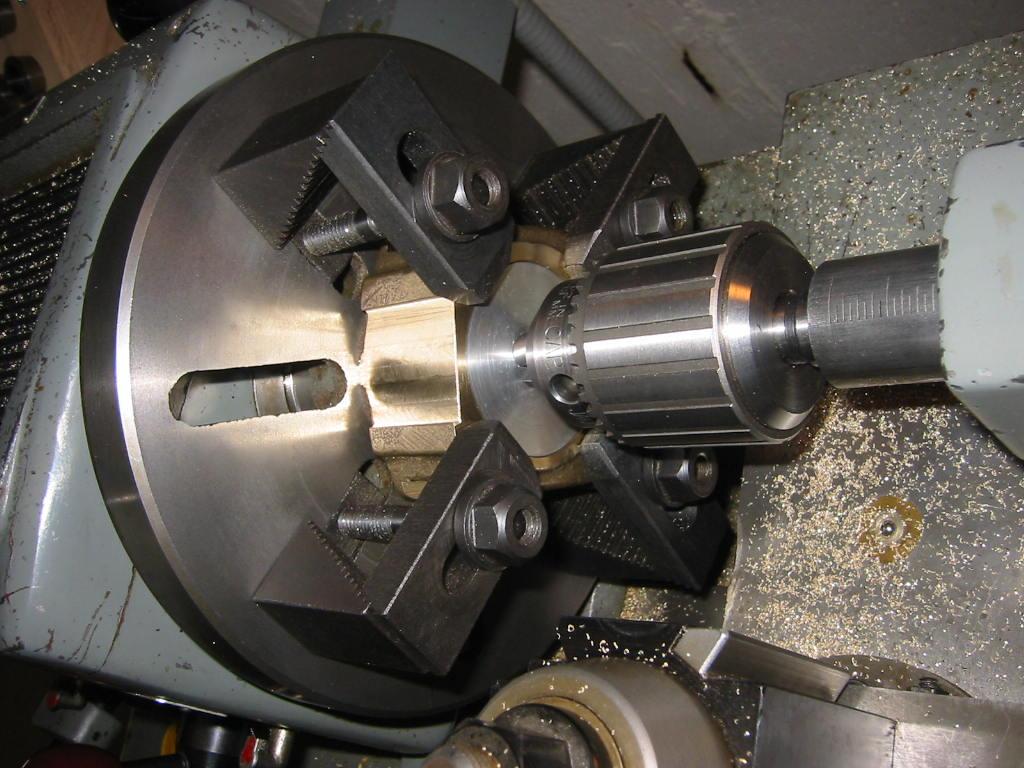

1-Mar-06 Here's how we rough-centered the axle box before using the indicator for fine-adjusting. We put the aluminum plug, which we used during previous steps, inside the rough bore, and use the tailstock to press and hold the axle box in place while we set up all the clamping blocks.
