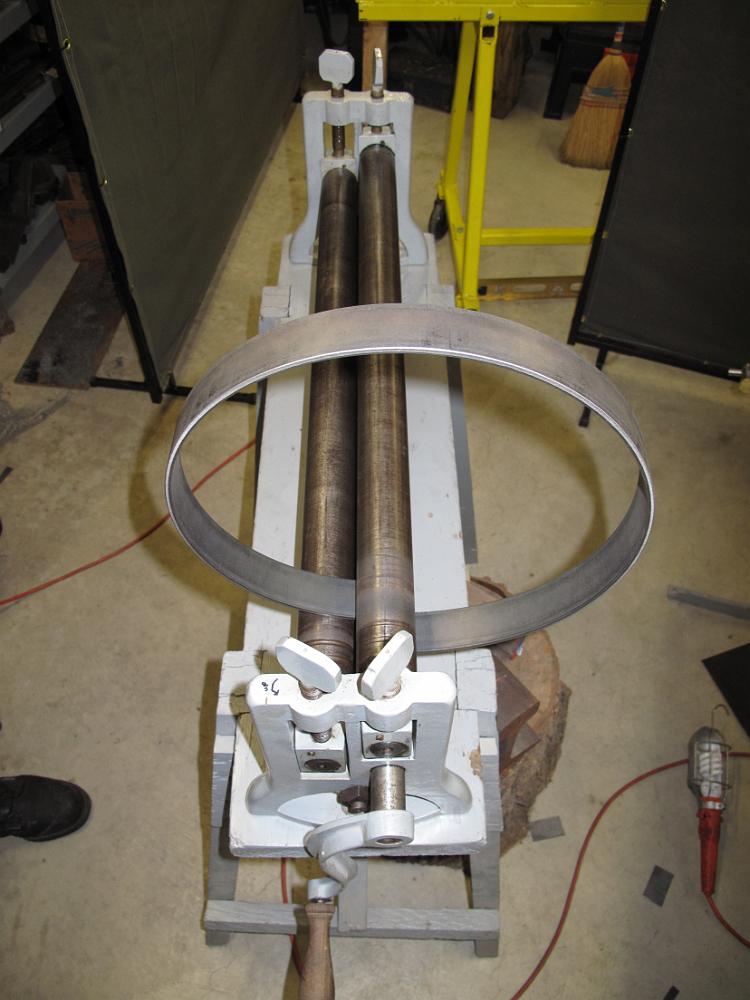

3-Feb-10 My poor aged pinch roller suffers abuse when I roll the 3/16" thick, 1-1/2" wide mild steel. The wooden stand the roll is on wobbled, swayed and jumped around the floor under the pressure we put on the cranking handle (which also bent under the force) to roll this 41" long piece of metal. It still did the job!
