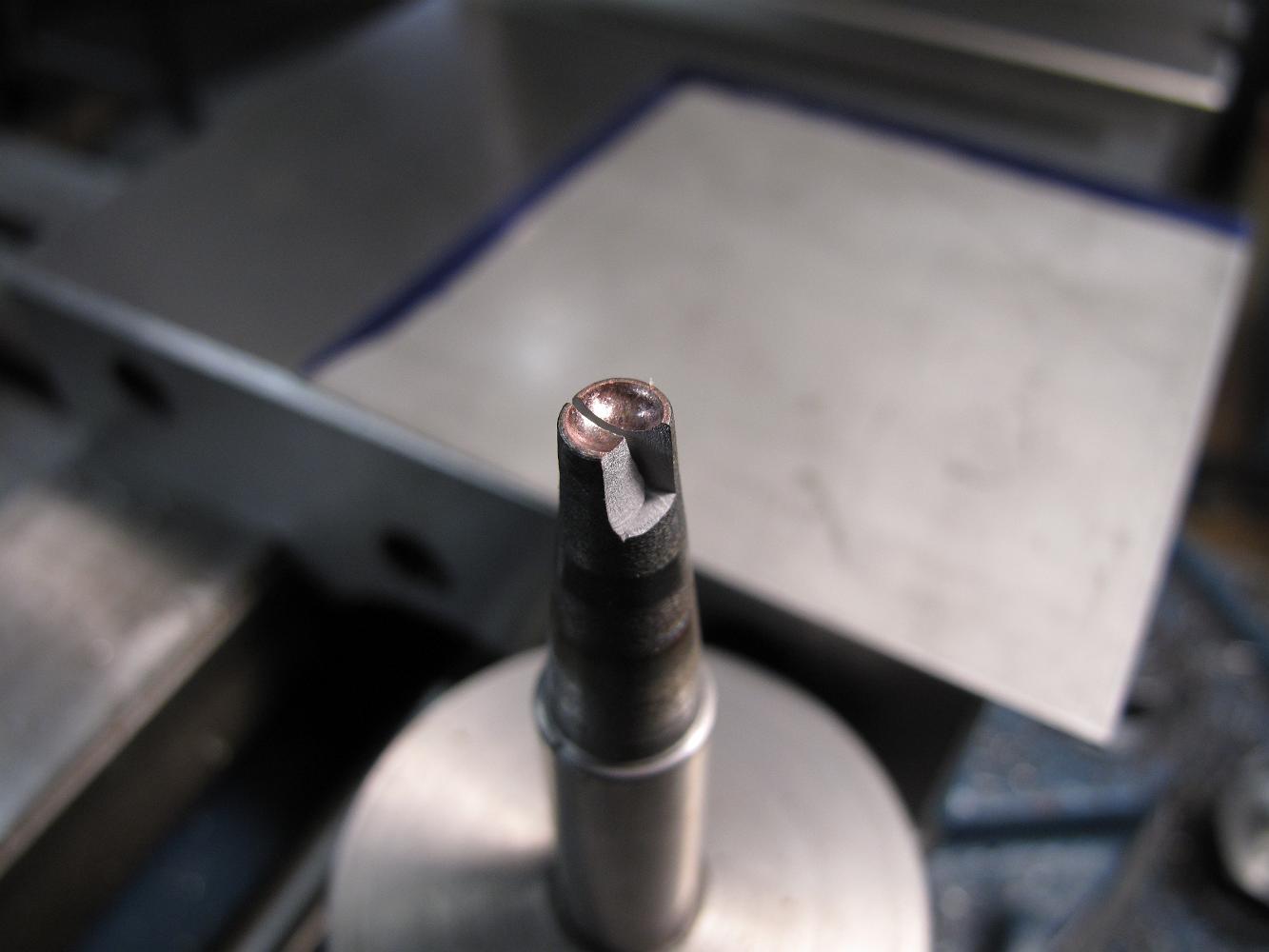

Too much pressure! This is the broken end of my riveting buck which shattered while putting the damper guide bars on. Bill thought 120psi was a 'little too much' on the riveting gun. We had to stop and make a new buck.
