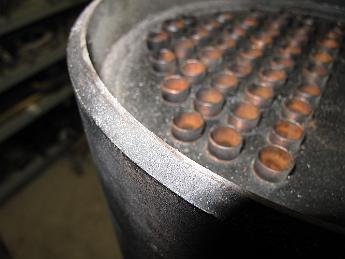

End view or smokebox view of the new boiler. The perspective is a bit strange since the 50" boiler is sitting on the floor leaning against the wall and I had to hold the camera over my head and blindly take the picture. In addition to the rows of flues, you can also see the single steam delivery pipe at the top, and harder to see in the black paint, two smaller throttle and blower accessory pipes coming out the end. 18-July-2002
