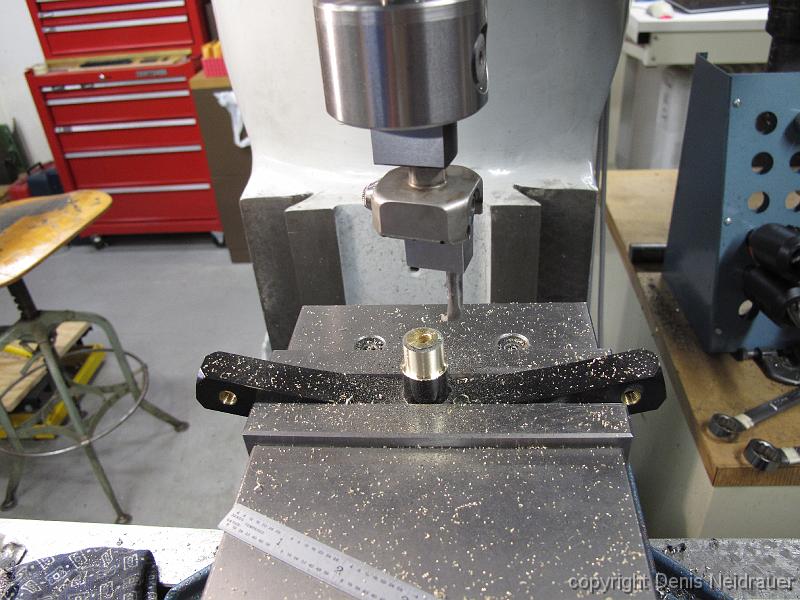

10-Oct-2011 My larger boring head did not have enough travel to allow outside machining, so we chucked up another smaller head to achieve the outside distance we needed. Not a very rigid setup, but acceptable for cutting brass with easy tolerances.
