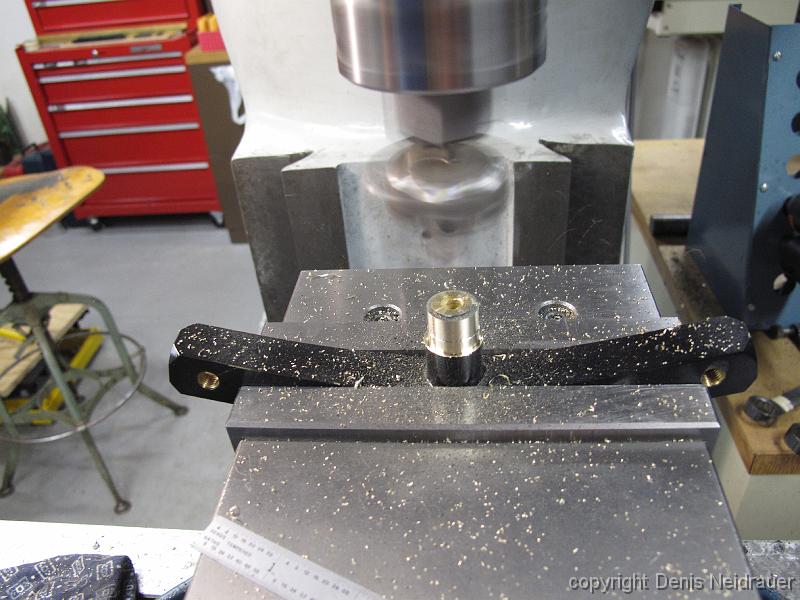

10-Oct-2011 We've centered and indicated the spindle directly over the manifold nipple. Using an endmill machined the nipple shorter and now are using a boring bar to cut on the outside to reduce the diameter so we can put new pipe threads on it.
