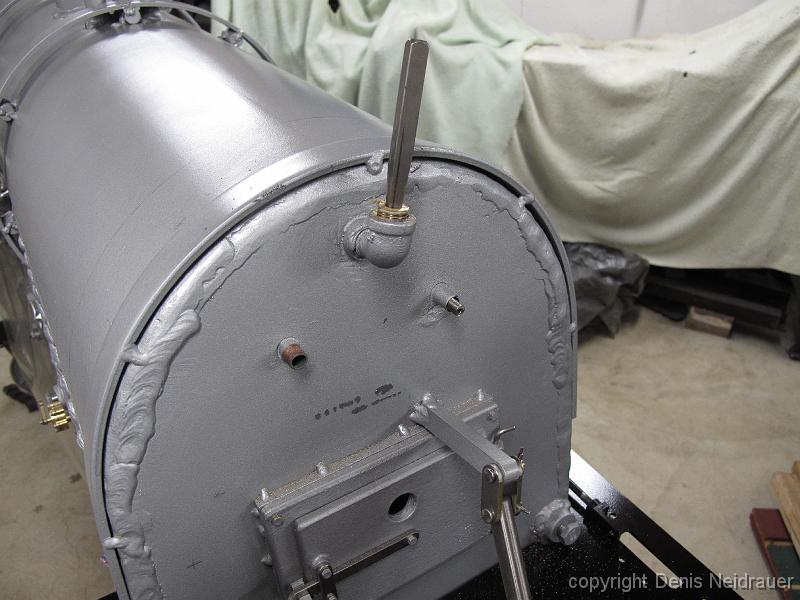

10-Oct-2011 Another "not everything goes to plan" example. The manifold ended up projecting ABOVE the cab roof, which will not do. Upon assembly, the street elbow was threaded onto the manifold and the whole unit spun onto the boiler. Since then we welded the throttle bracket on and now could not un-thread the manifold assembly. :( So we cut the manifold off the elbow and then used an easy-out to remove the threaded stub.
