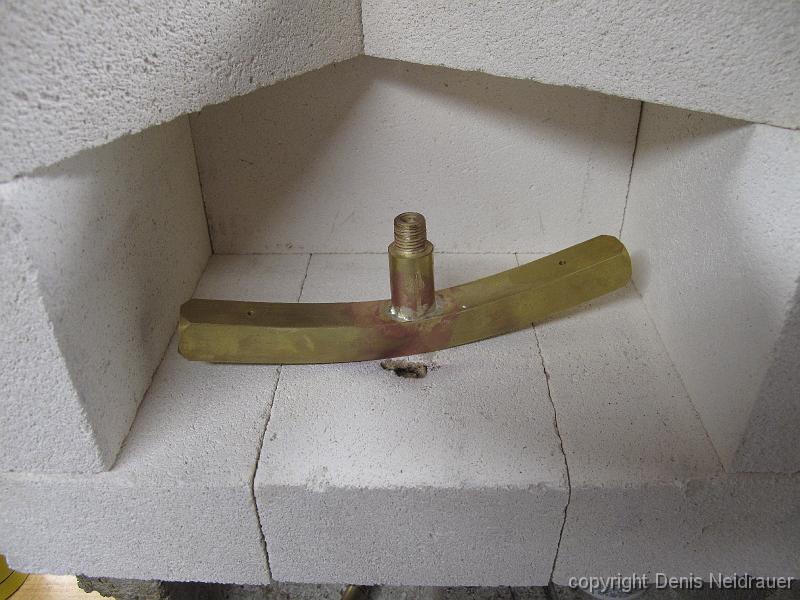

5-Sept-2011 Cleaned up Backhead manifold after silver soldering on some firebricks. I held the Mapp gas torch to the barstock, Bill held the propane torch to the round fitting to get the whole thing hot enough for the silver solder.
