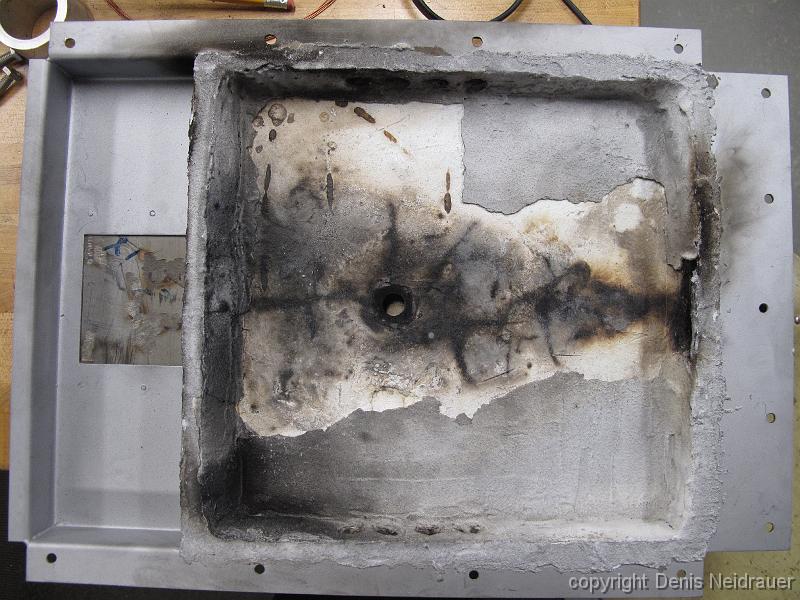

20-Aug-2011 The after-effects of the burner test. The use of mortar grout as a protective skin over the softer high-temperature insulating cement was a failure. The thin grout cracked and peeled up into the flame path. I resorted to breaking and peeling the sections away, removing them from the pan.
