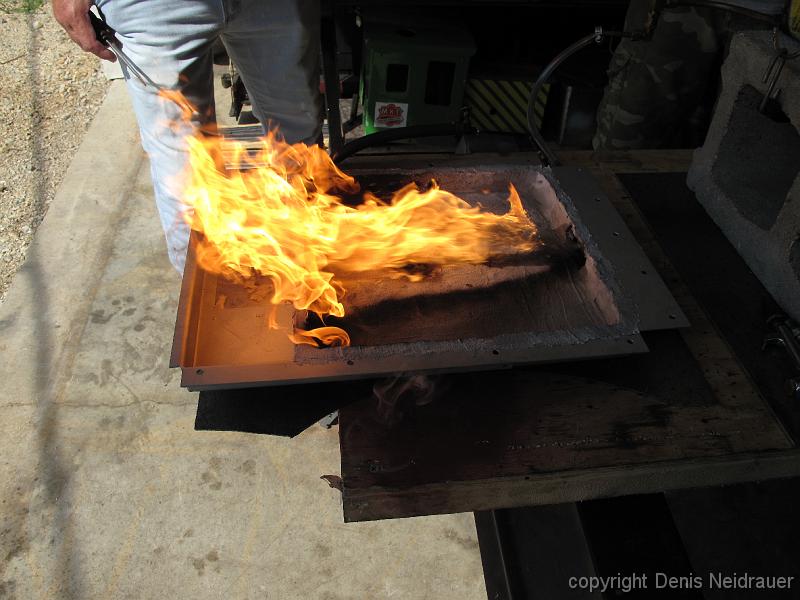

This slot style burner is made of two plates of brass bolted together. it has two 1/4" wide slots, steam on the bottom, oil on the top. The steam slot is 0.010 deep and the oil is 0.030 deep, separated by a piece of stainless steel shim stock.
