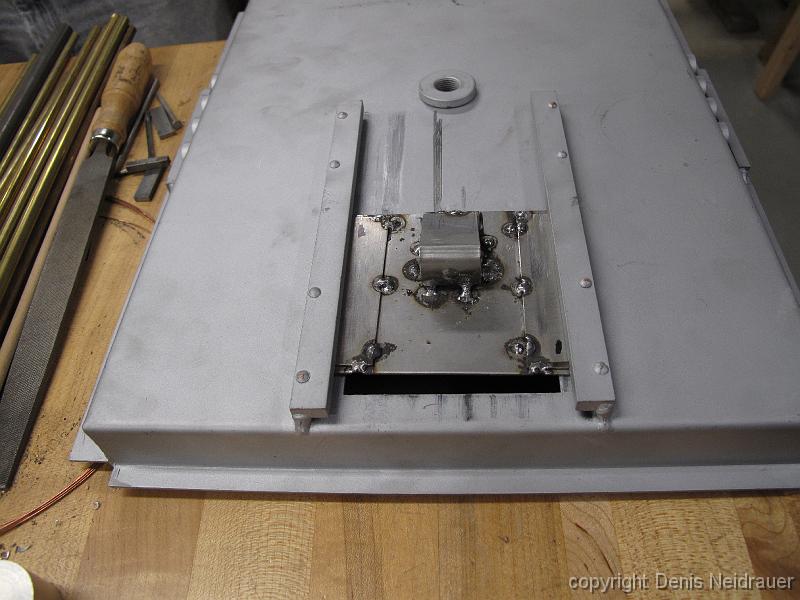

23-Mar-2011 The damper door assembled. When you weld thin metal like this, it really move around. It warped at the edges which caused binding. we straightened it out in the vise, but you can see where it scratched the paint off from rubbing. By the end we got it to move freely.
