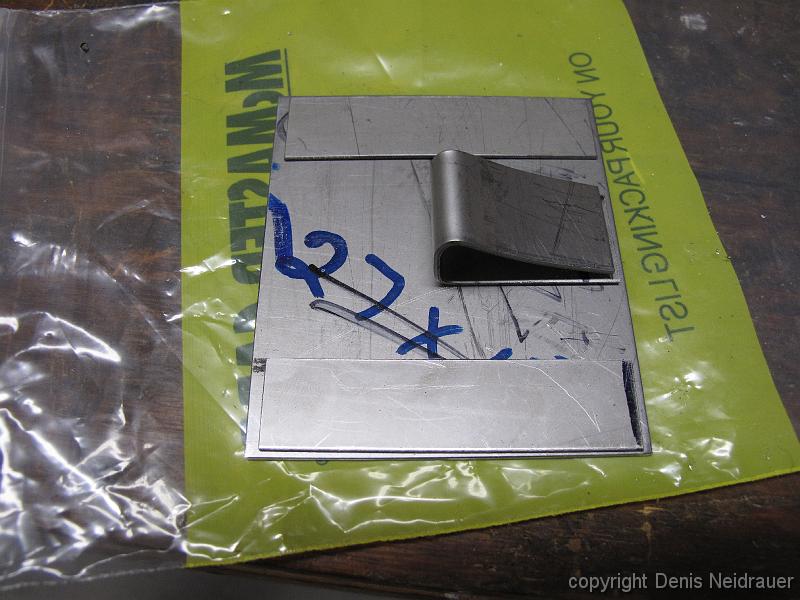

9-Mar-2011 We begin work on the damper. We use stainless steel and have gone off-print a bit, using thinner .062 thick pieces. We also don't like the 10-32 screw idea for adjusting the damper position It will take some 140 turns of the screw to go full open to rull closed! No way!
