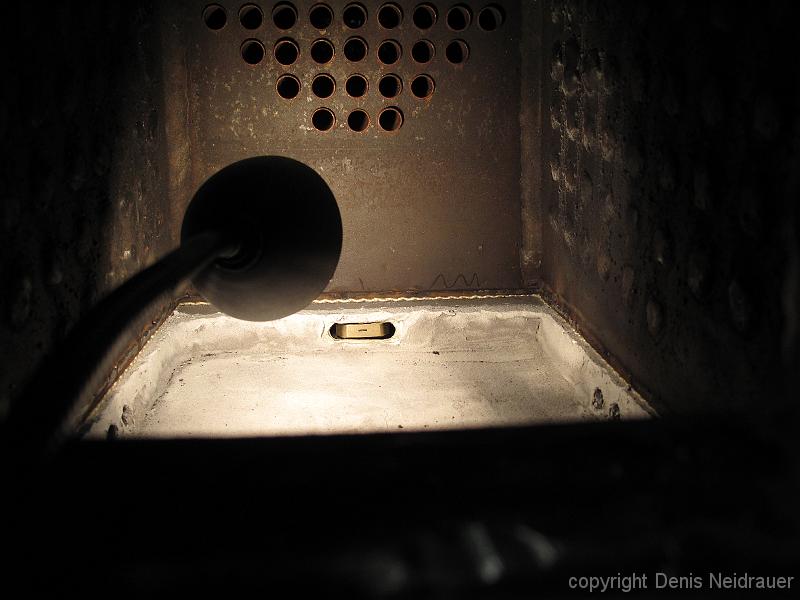

5-Mar-2011 Firebox interior showing burner assembly installed in firepan. We think the primary air should be drawing in around the burner, which keeps the burner cooler and starts to mix the air/oil mixture for a more complete and earlier burn.
