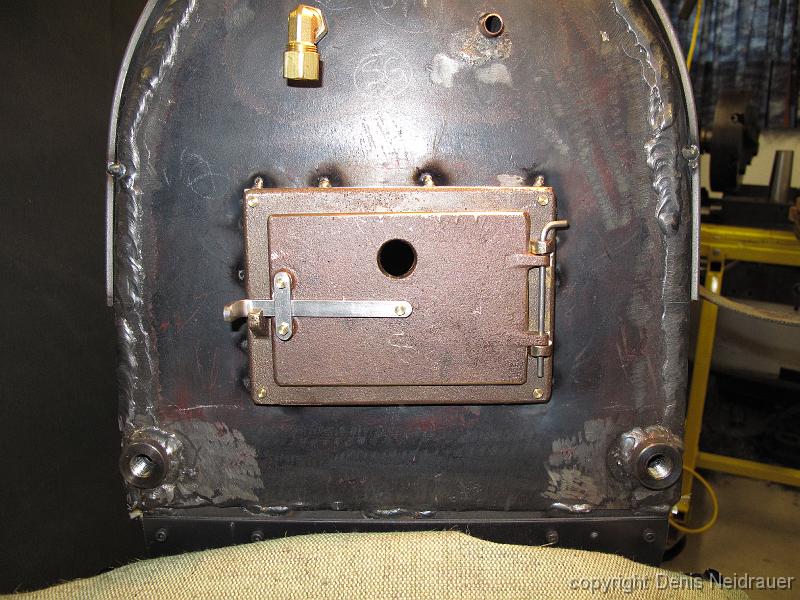

5-Mar-2011 I have the idea to weld a frame on to the boiler which is already drilled and taped for the firedoor to mount to. Here I've tack-welded the pieces to the boiler and installed the firedoor.
