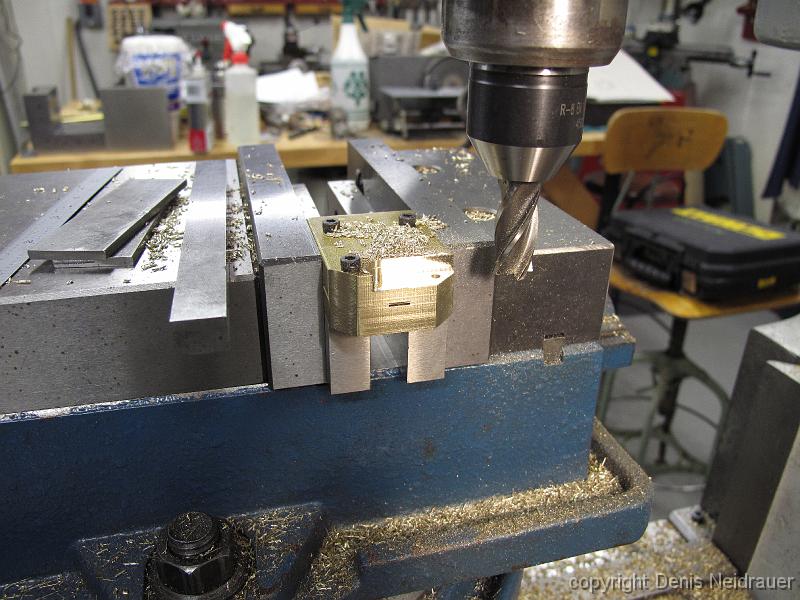

5-Mar-2011 Milling a step inthe burner to reduce its size in the firepan openening, we've also beveled the corners and machined the end faces together.
