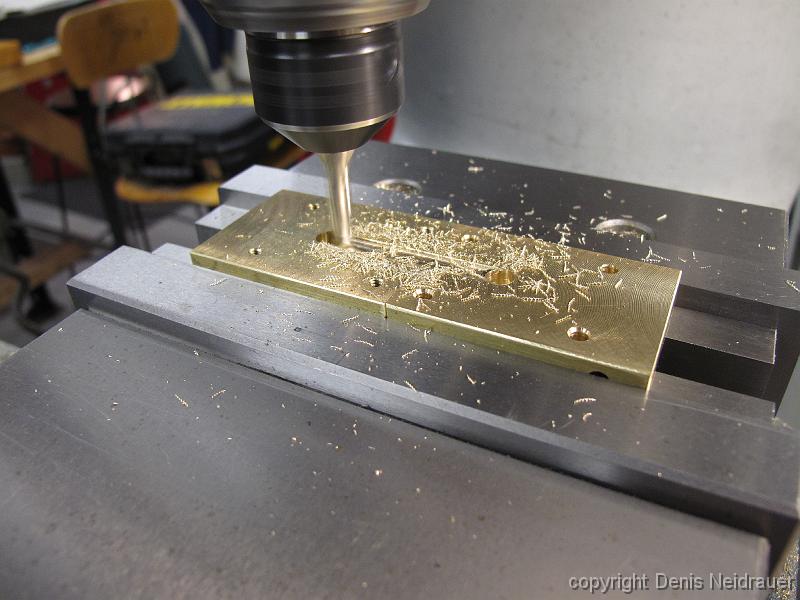

5-Mar-2011 We use a 1/4" endmill to mill the steam and oil slots in both block simultanously. The blocks are extra long so we can maching them to identical lengths later.
