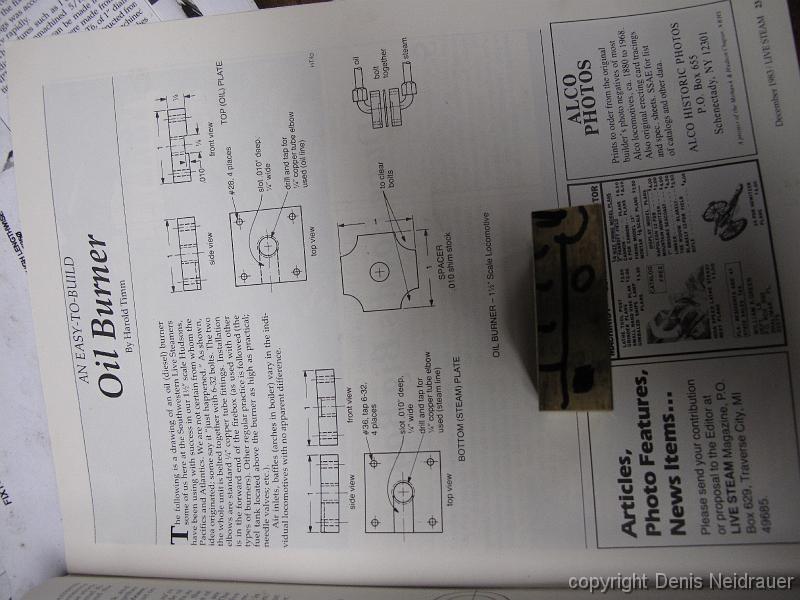

2-Mar-2011 After much discussion about dual burners, inside-mixing burners and the Bagely burner (which I was partial to) we decide to build a slot style burner, using one by Harold Timm, Live Steam December 1983, changing dimensions to fit our engine.
