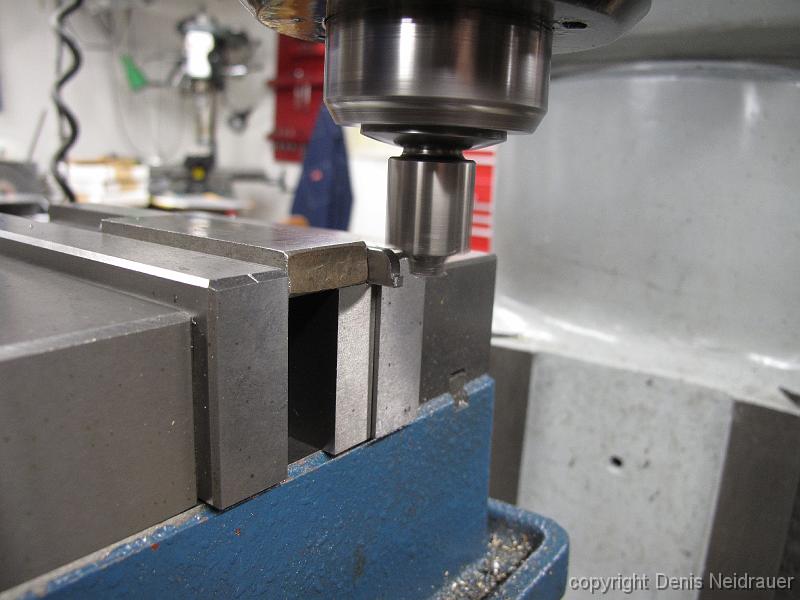

22-Feb-2011 A neat trick: to get a nice radius on the end of part, use a courner-rounding bit to make one-half, then flip the part ofver and do the other half.
