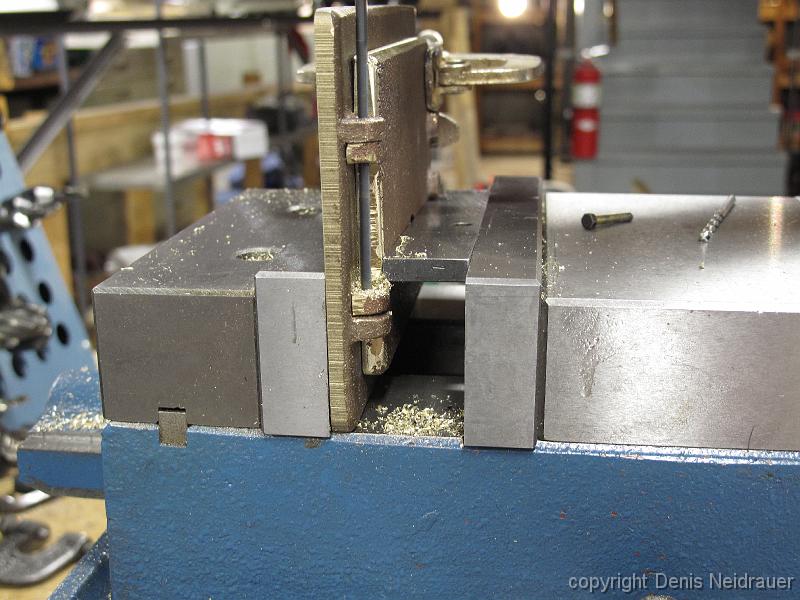

Using a long aircraft drill to drill the lower hole using the upper hole as a guide. this insures the holes are in line with each other.
