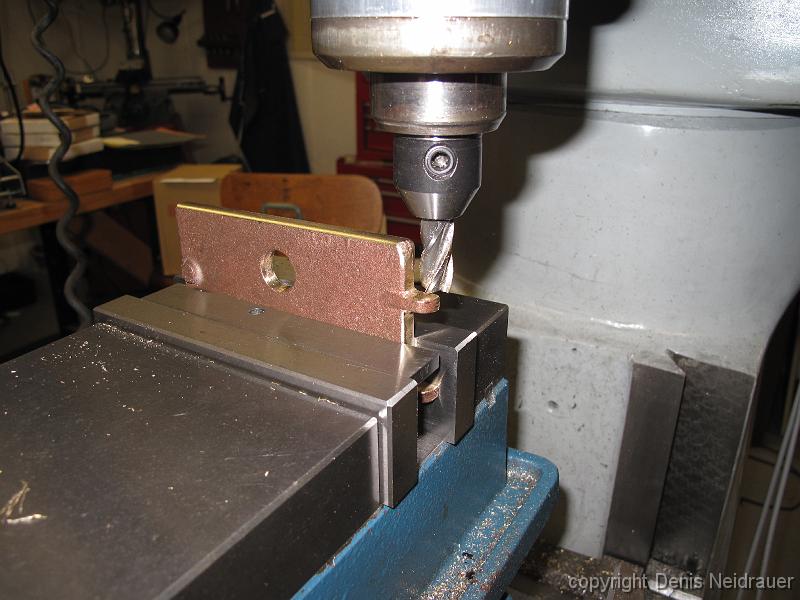

19-Feb-2011 Machining the door hinges flat to match the foor frams hinge size. Also in a previous step, Bill has cleaned up the edge of the door casting with an inside corner rounding bit.
