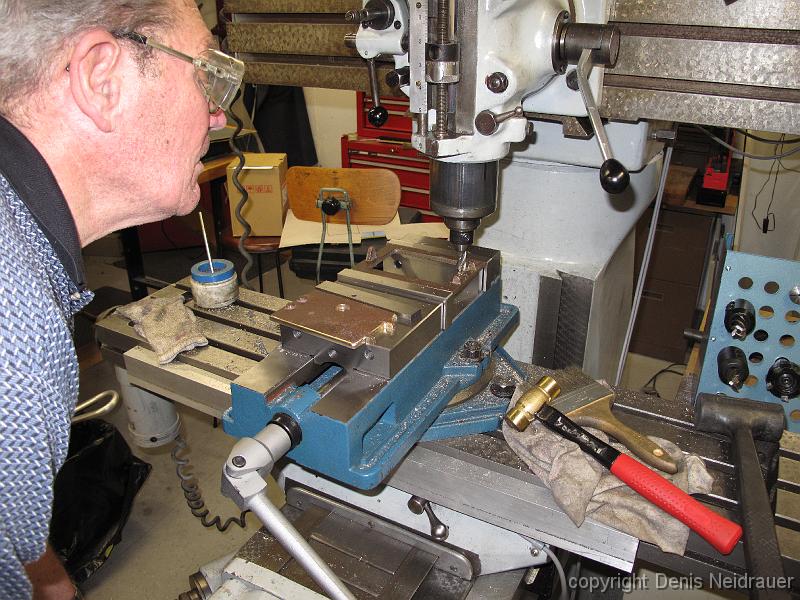

19-Feb-2011 Taking a small clean up cut on the door frame hinges. This gives a nice flat surface for the door to contact by removing the draft from the casting, and also gives us a dimension to aim for when machining the door hinges.
