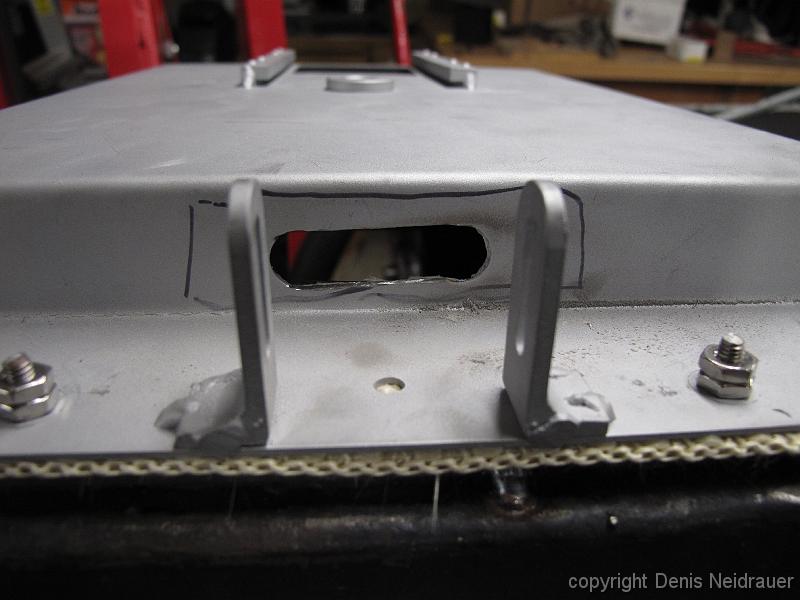

29-Oct-2010 Here's a closeup of the fire pan with the modifications to the burner opening. Bill and are were not satisfied with the close-fitting 1/2" holes the prin calls for, it doesn't allow for much air intake. And we're note quite sold on the two-burner design either. Using a dremel high-speed too with a diamond cutoff blade, I removed the metal between the two openings, and the diamond wheel cut though the refractory cement with causing any trouble.
