ExhibitPlus FirepanFabricationMoreOf26April10 007

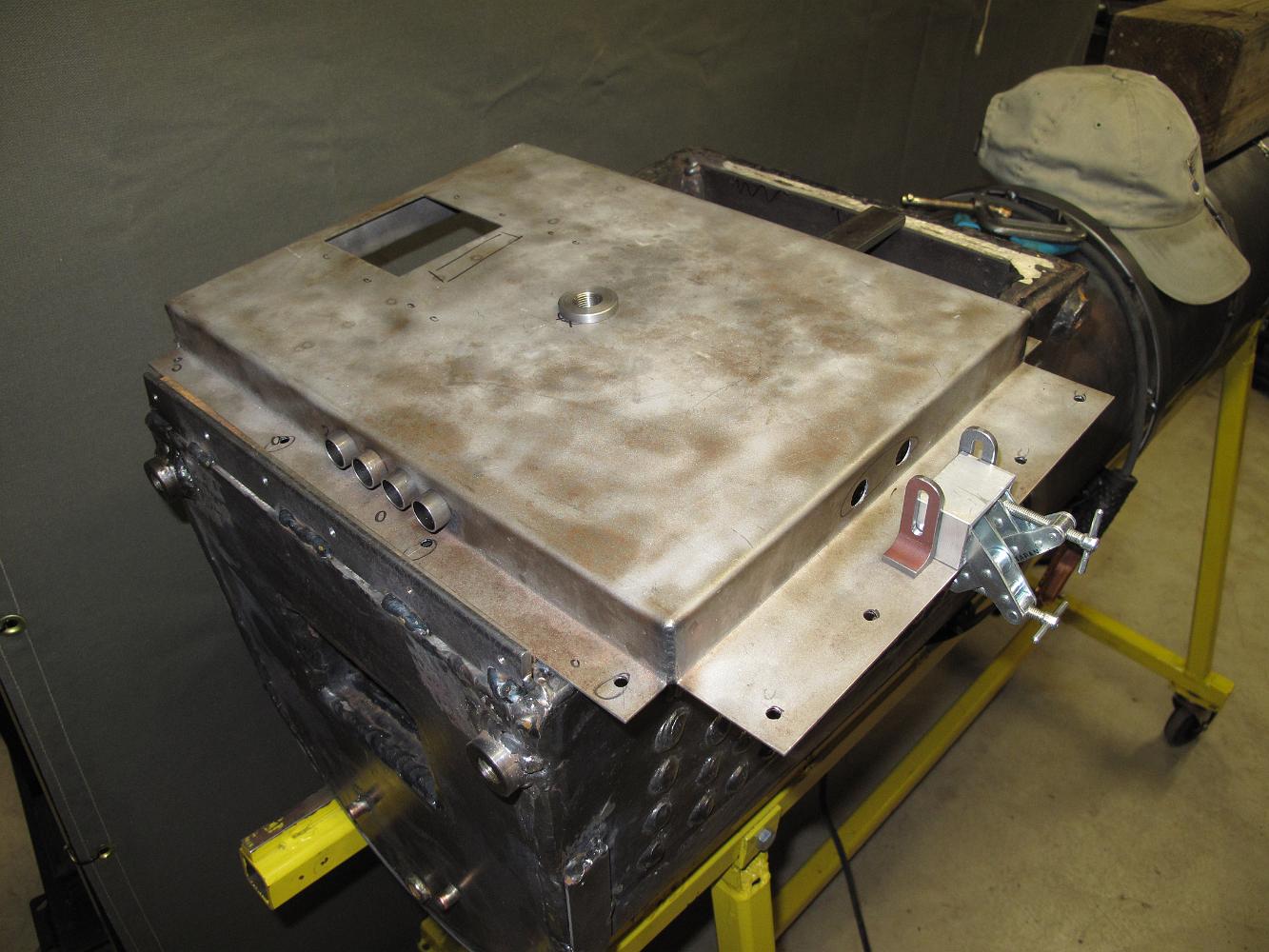

The air intake tubes are touch-welded to the fire pan and the burner brackets are ready to be positioned and welded. We used a sizing block to make sure they would be correctly spaced. The spark plug adapter bushing was made from plain 1018 steel, luck for me Bill had a M13 spark plug tap to thread the hole!
