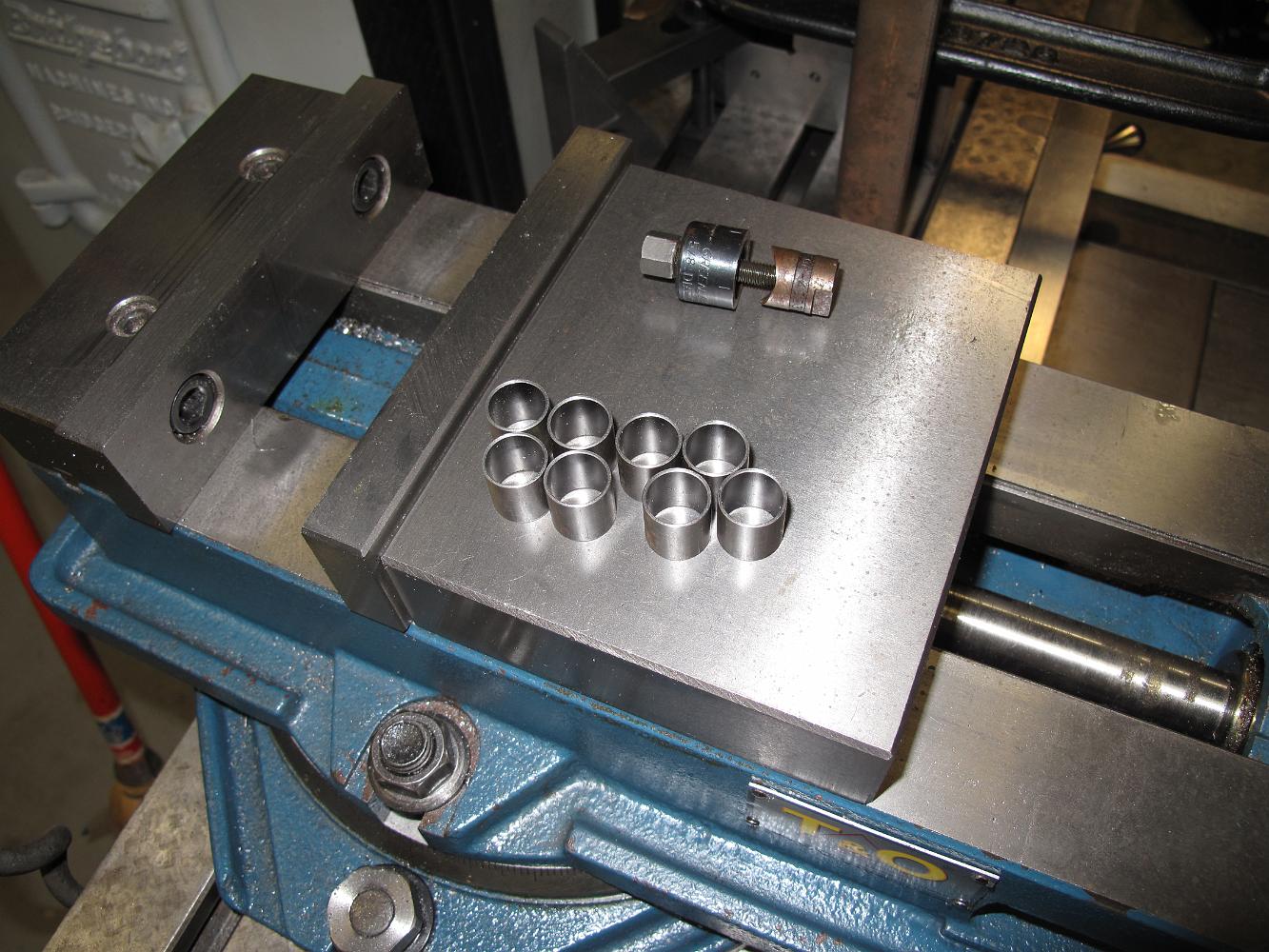

While Bill was putting the holes in the pan, I chucked a piece of 5/8" steel tube in the lathe and turned out eight air intake tubes. In the background you can see one of the knockout plug cutters. This was definately the right tool for the job, cutting nice round holes in sizes I don't have drill bits for.
