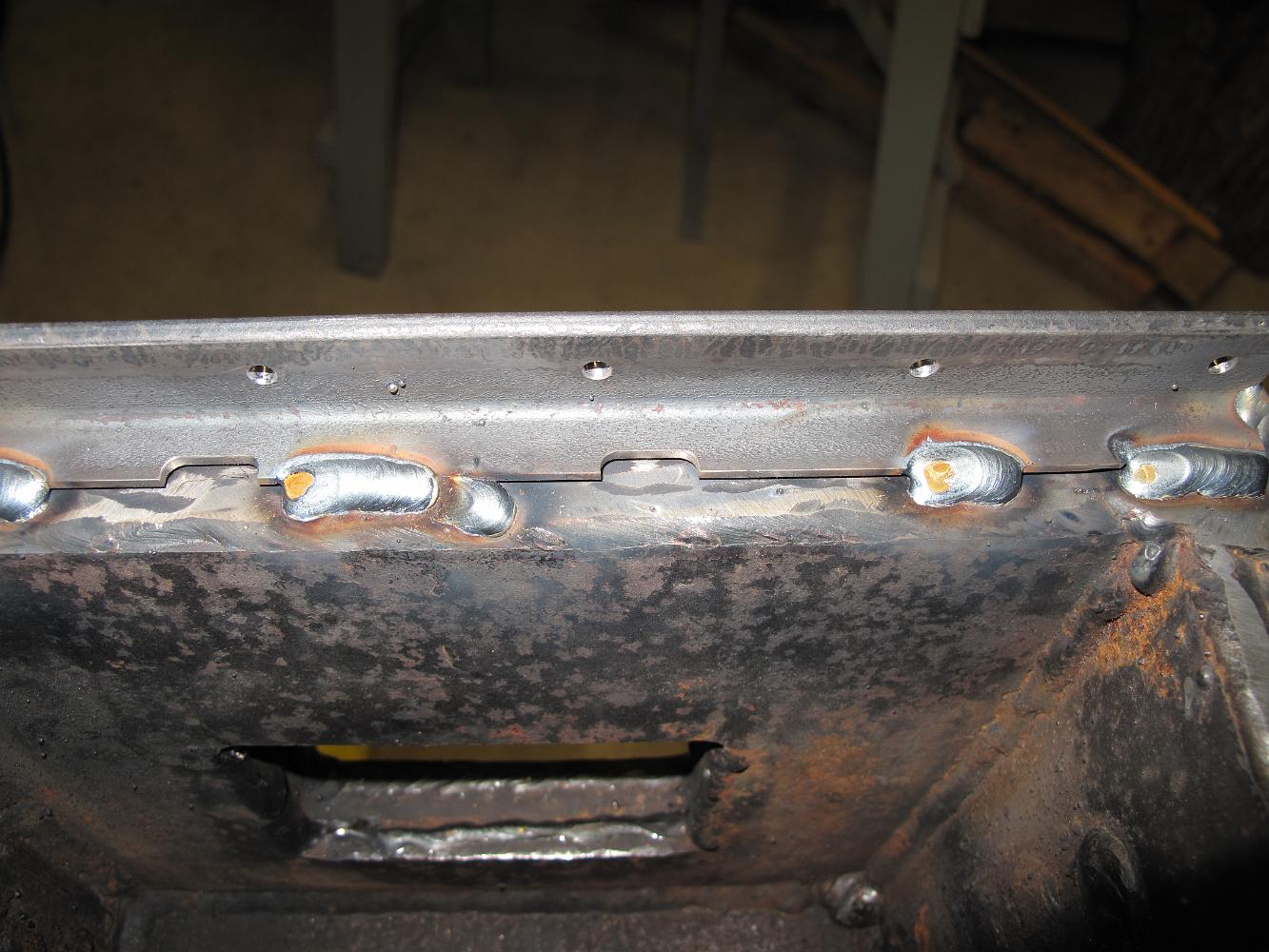

24-Feb-10 We decided to weld the boiler mounting bracket to the bottom of the boiler instead of bolting it like the print calls for. I didn't want to grind all the uneven mud ring weld beads flat, or try to hand drill and tap through the weld into the mud ring.
