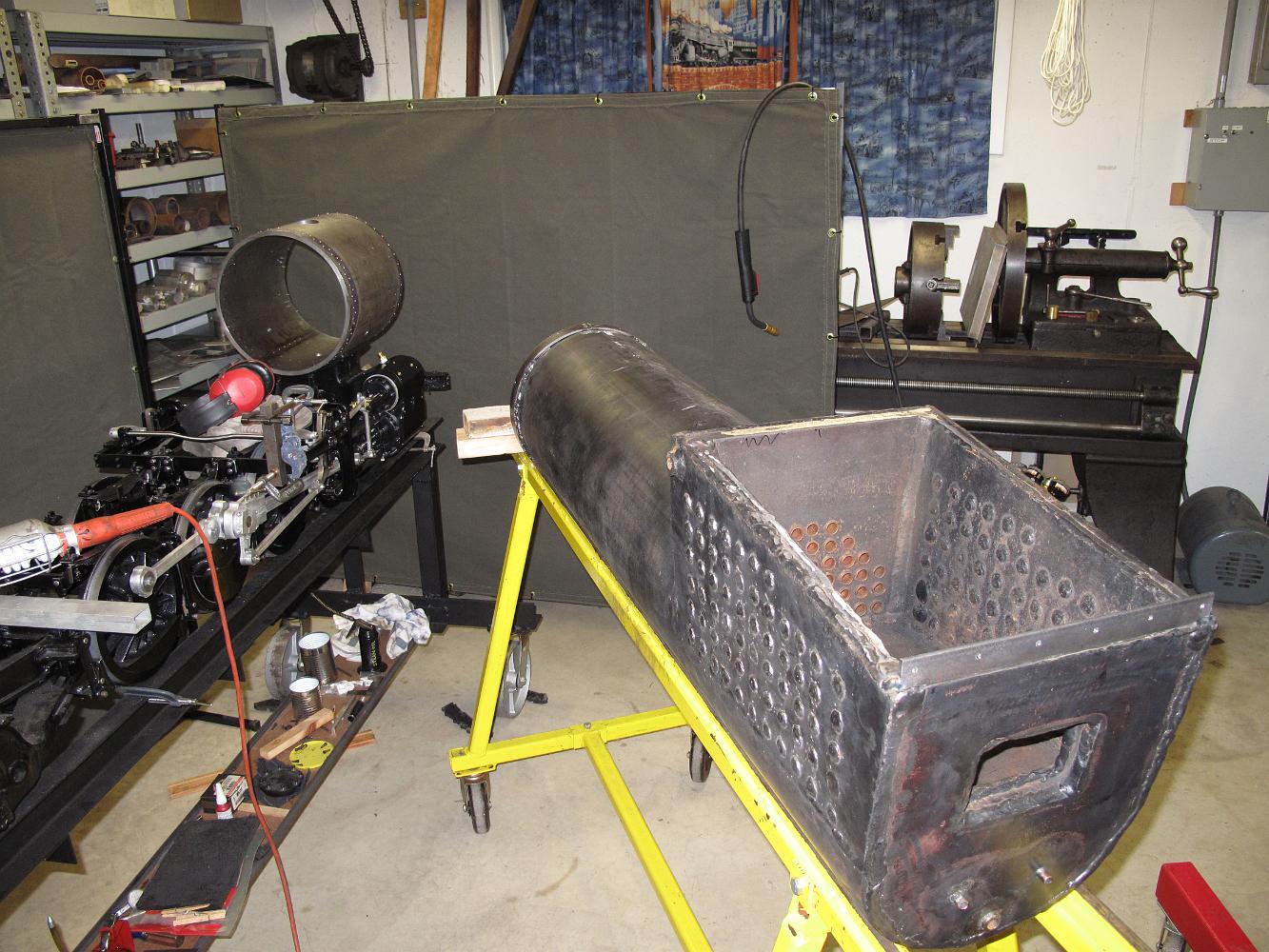

17-Feb-10 After considerable effort to remove the smokebox from the boiler thanks to the now Press Fit boiler band (instead of a slip fit), we prepare to finish weld the rear boiler mounting bracket and the boiler bands.
