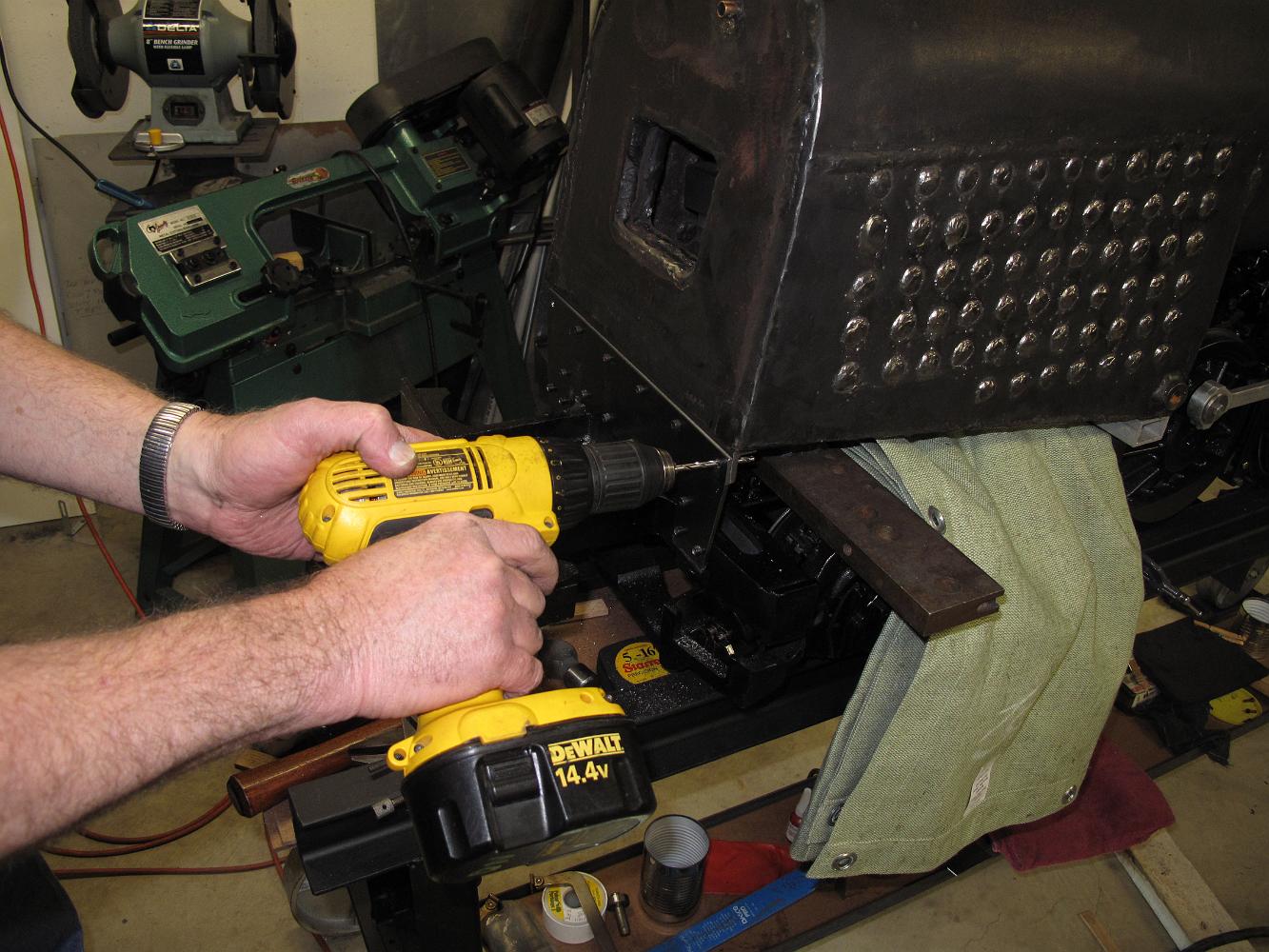

Match drilling the rear boiler support bracket. We had to remove the wood blocking holding the boiler up to install the support bracket. Using machinists jacks inside the firebox, we hold the rear of the boiler up, and using a level inside the firebox on the crownsheet, set the crownsheet level front to back and left to right. The angle bracket was tack welded to the bottom of the boiler before drilling the holes.
