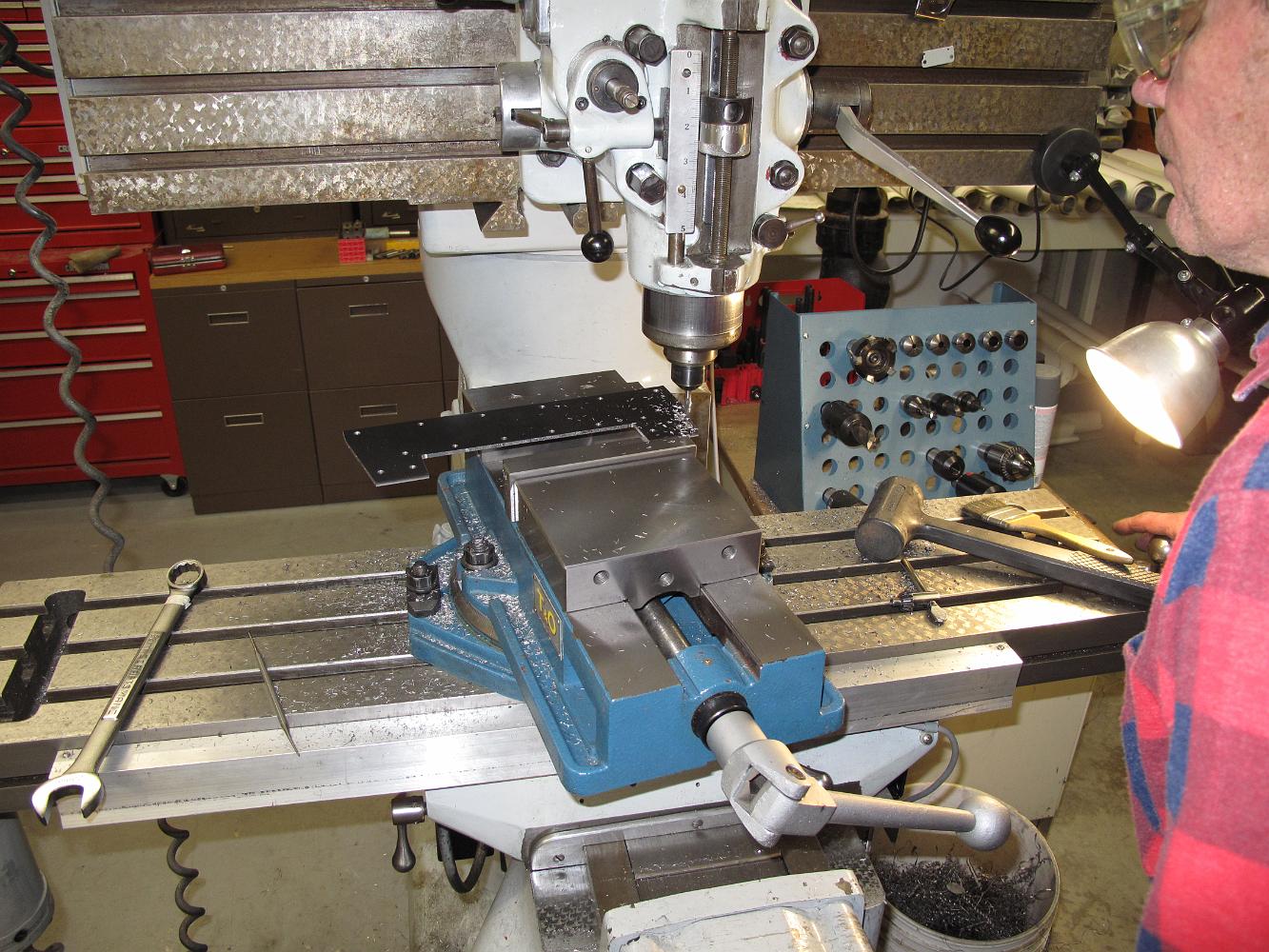

13-Feb-2010 Machining the rear boiler support bracket plate. After waiting 5 weeks from my metal supplier, I finally have some stock to work from. First we laided out and drilled the holes with the vice square on the table. Next we installed the swivel base on the vice to cut the angled sides. This was the first time the swivel base has been used, I had to clean the protective wax off it from when it was shipped.
