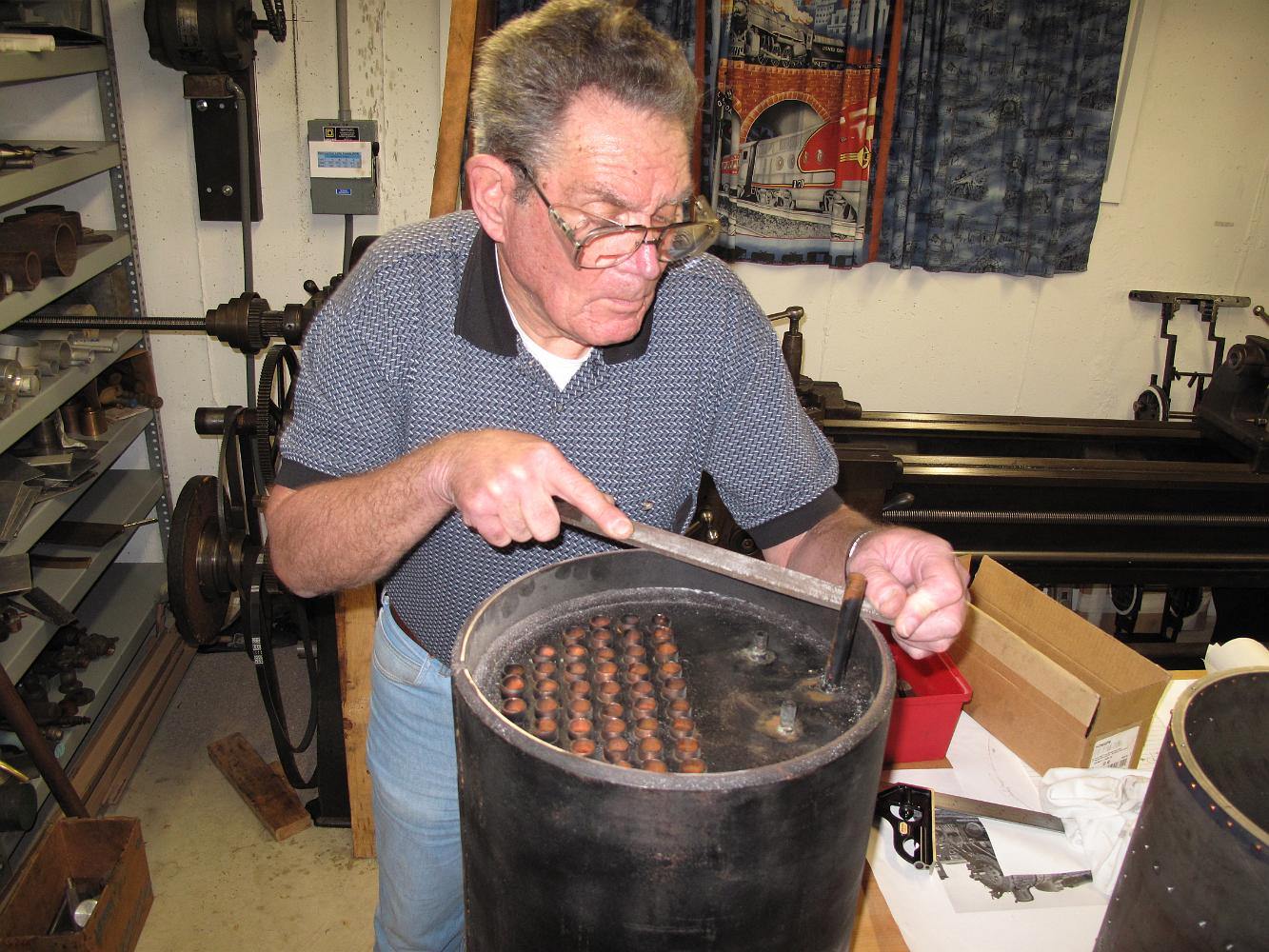

Bill takes a large file to see how much of the factory welding bevel we will have to take off to make the smokebox fit on the end. Conclusion: A lot. Time to get the angle grinder out.
