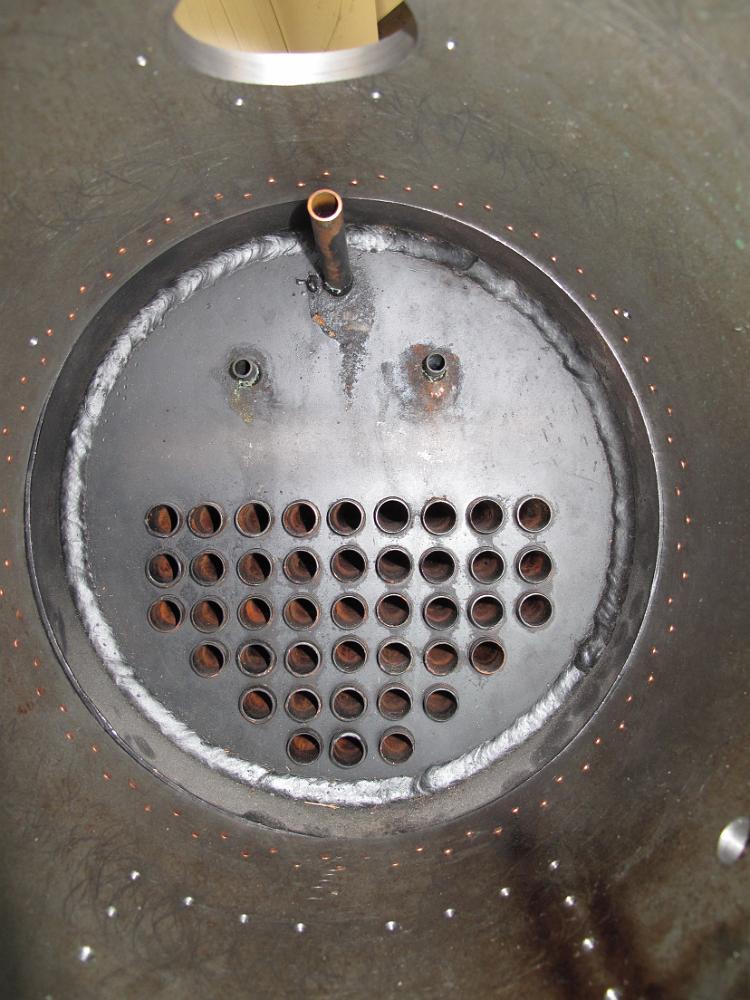

13-Jan-2010. Kind of an odd perspective here. The boiler is vertical standing on the floor and the smokebox is sitting on top of it. You can see how the smokebox and boiler do not quite line up since the boiler is not round.
