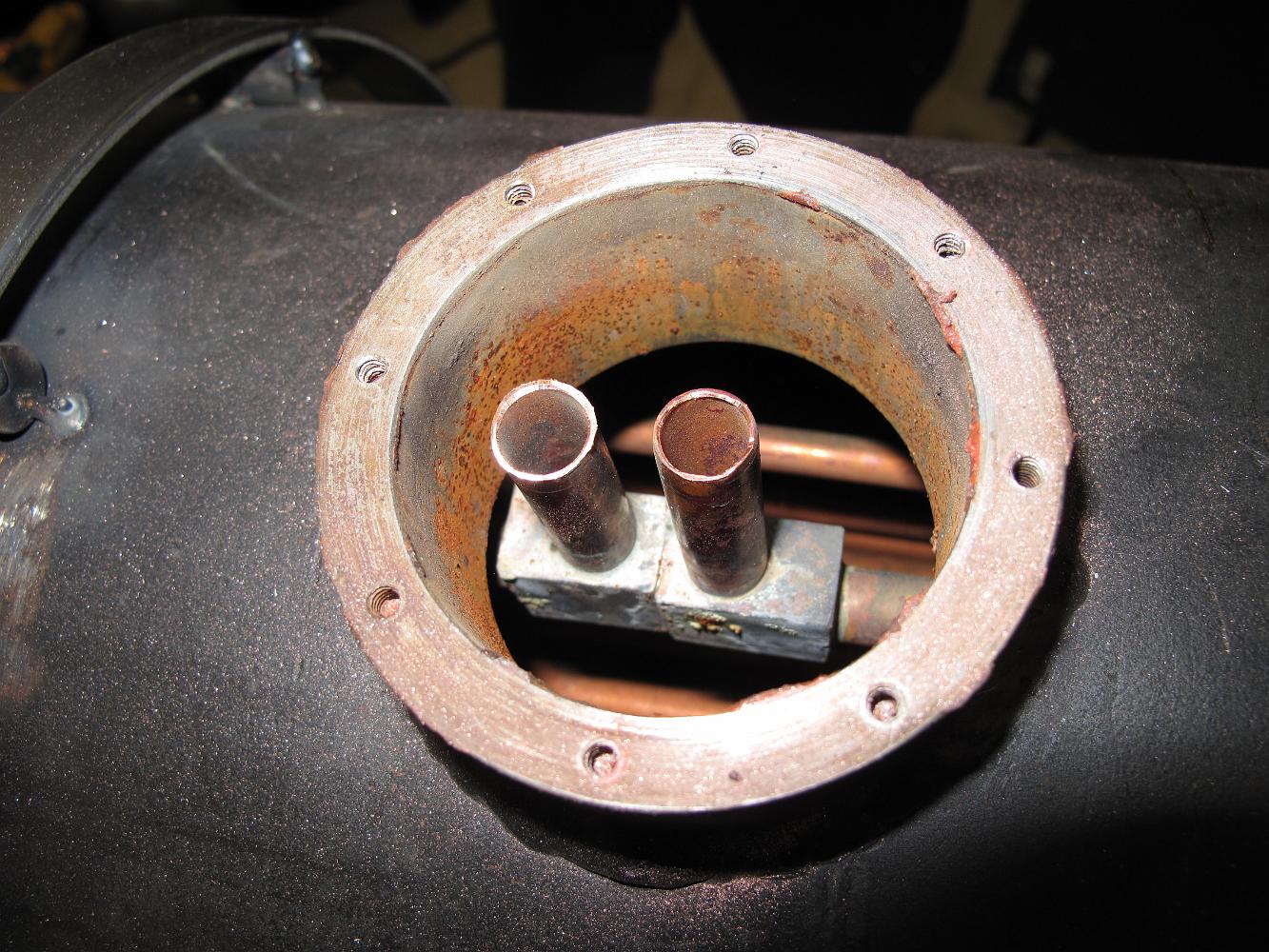

Here's one of those 'get around to it' tasks. While we had the boiler upright, we needed to cut the dry pipe down a little. As delivered there was only 1/16" gap between the top of the pipe and the bottom of the steam dome cover. I like dry steam, but the steam needs to be able to get into the pipe! A fiber cutoff wheel in the Dremel tool buzzes the extra length away.
