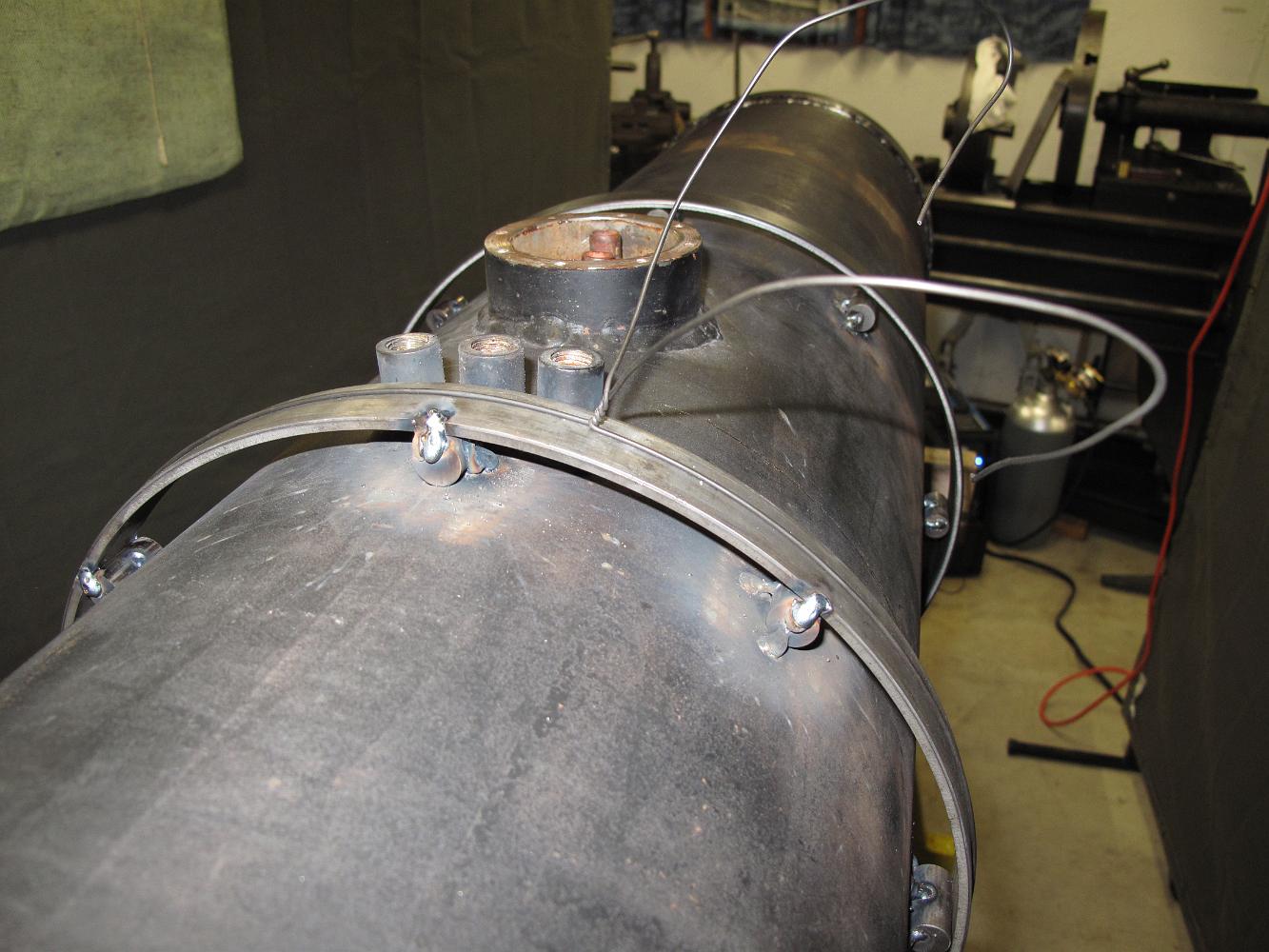

10-Mar-10 We rolled the boiler band mounts, slipped them over the boiler and used bailing wire ('Ford wire' said Bill) to squeeze it down for tack welding. We are still using 1" wide bands instead of the 1/2" called for to give us more 'wiggle' room for the jacketing.
