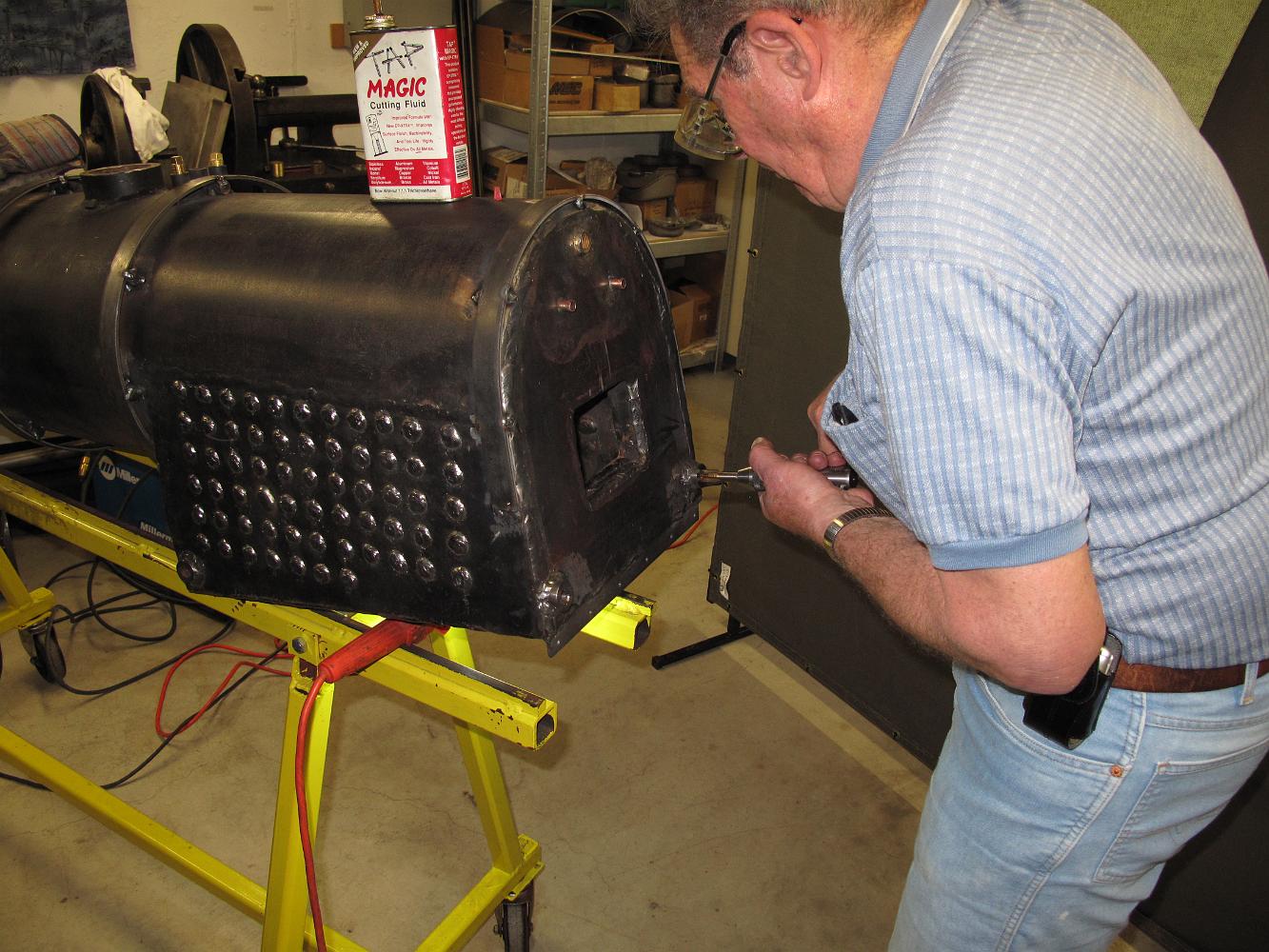

16-Mar-10 You can see both cleanout bosses here. I did not have a "Straight" handle style tap wrench large enough for this reluctant tap, so we tried to use a "T" handle. In the end we stopped the tapping operation, ordered a straight wrench and a new skip-tooth 1/4" pipe tap.
