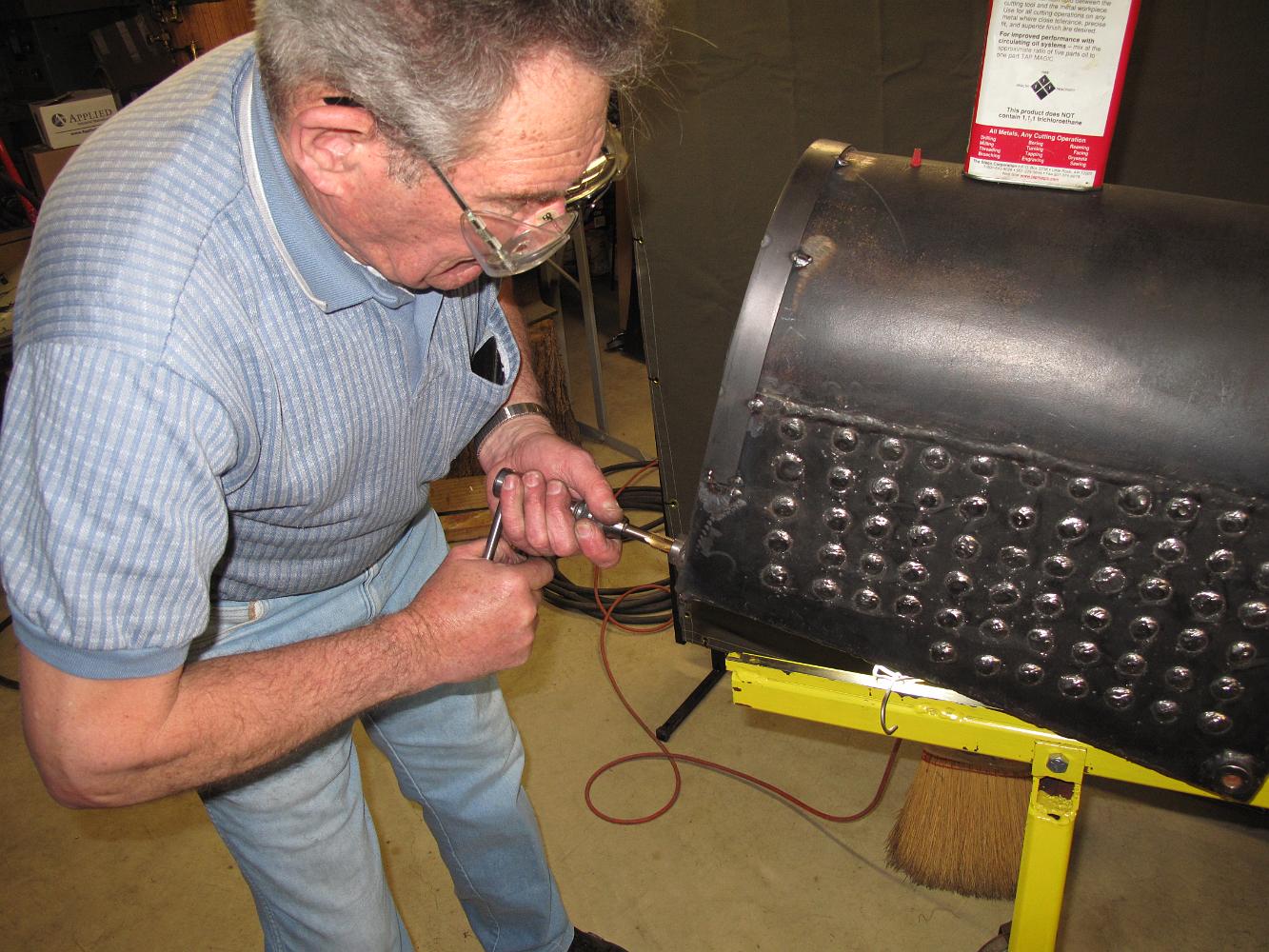

16-Mar-10 After welding two more cleanout bosses on the back of the boiler, Bill tries to tap the 1/4" NPT hole. Even with an oversized hole, a new cobalt coated tap and thread cutting fluid, the cutting is very difficult. We are afraid we will break the tap.
