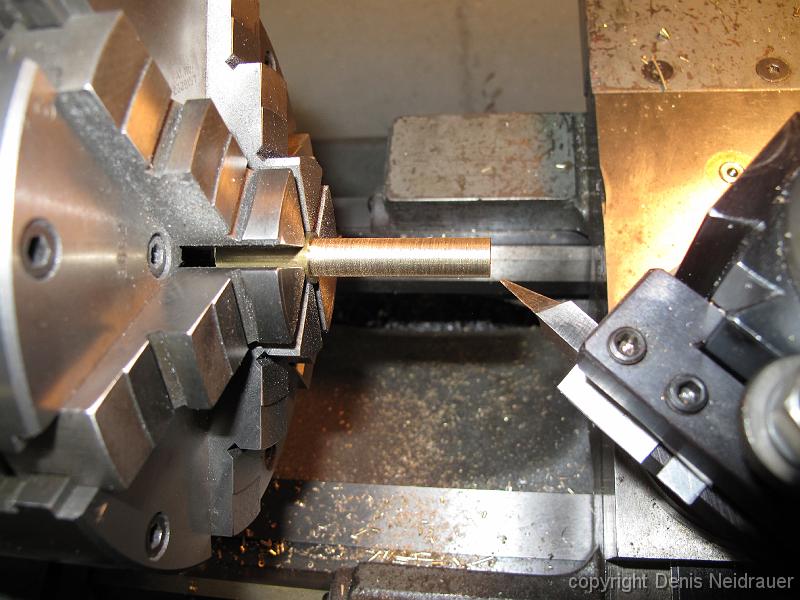

Turning a piece of brass with a specially ground tool to make the new valve stem. The special tool is needed to put an inside-cup face on a shoulder, which holds the rubber washer in place.
