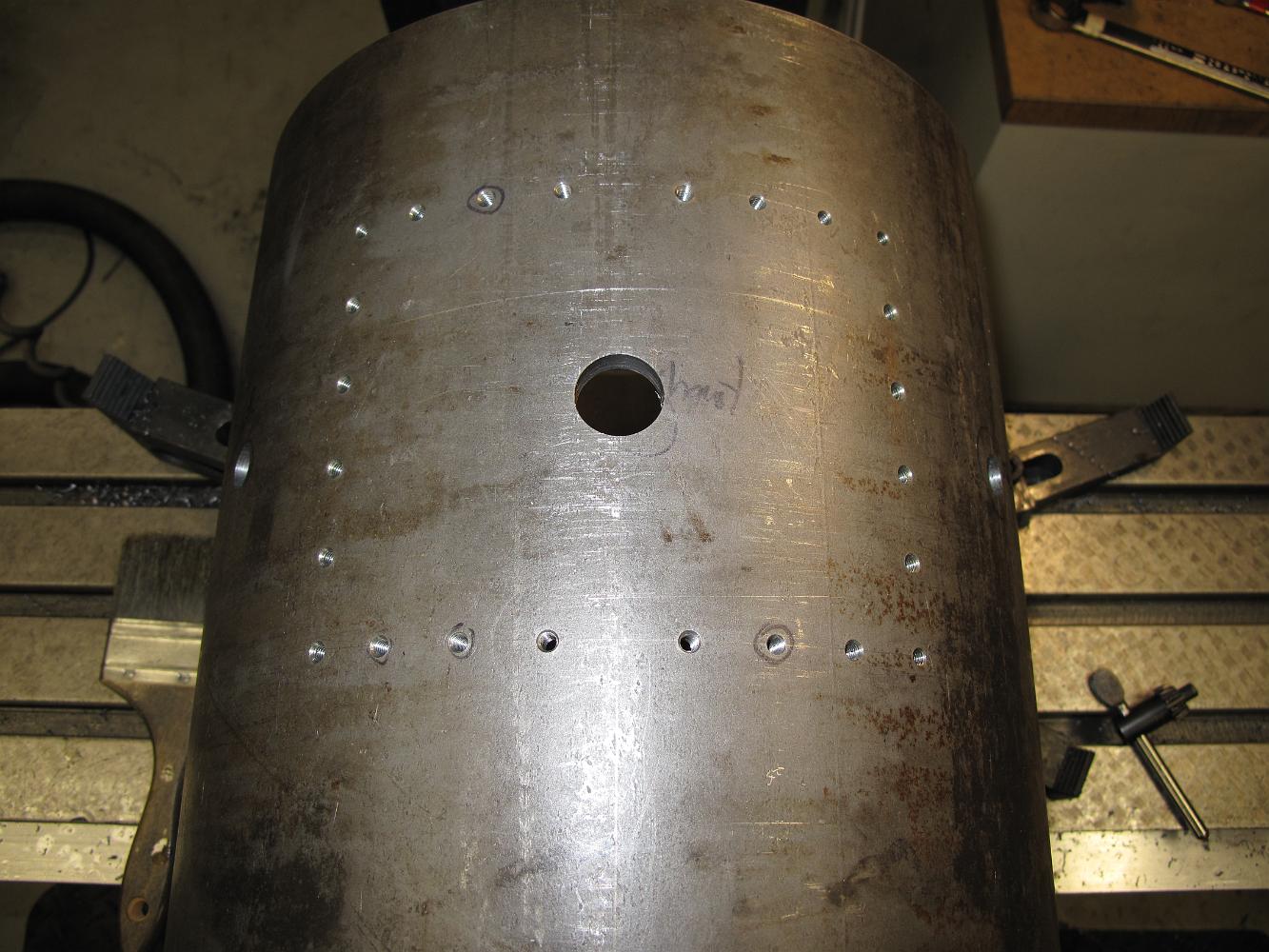

Here's what the smokebox shell looks like after 24 iterations (about 4 hours) of align, drill and tap operations.
