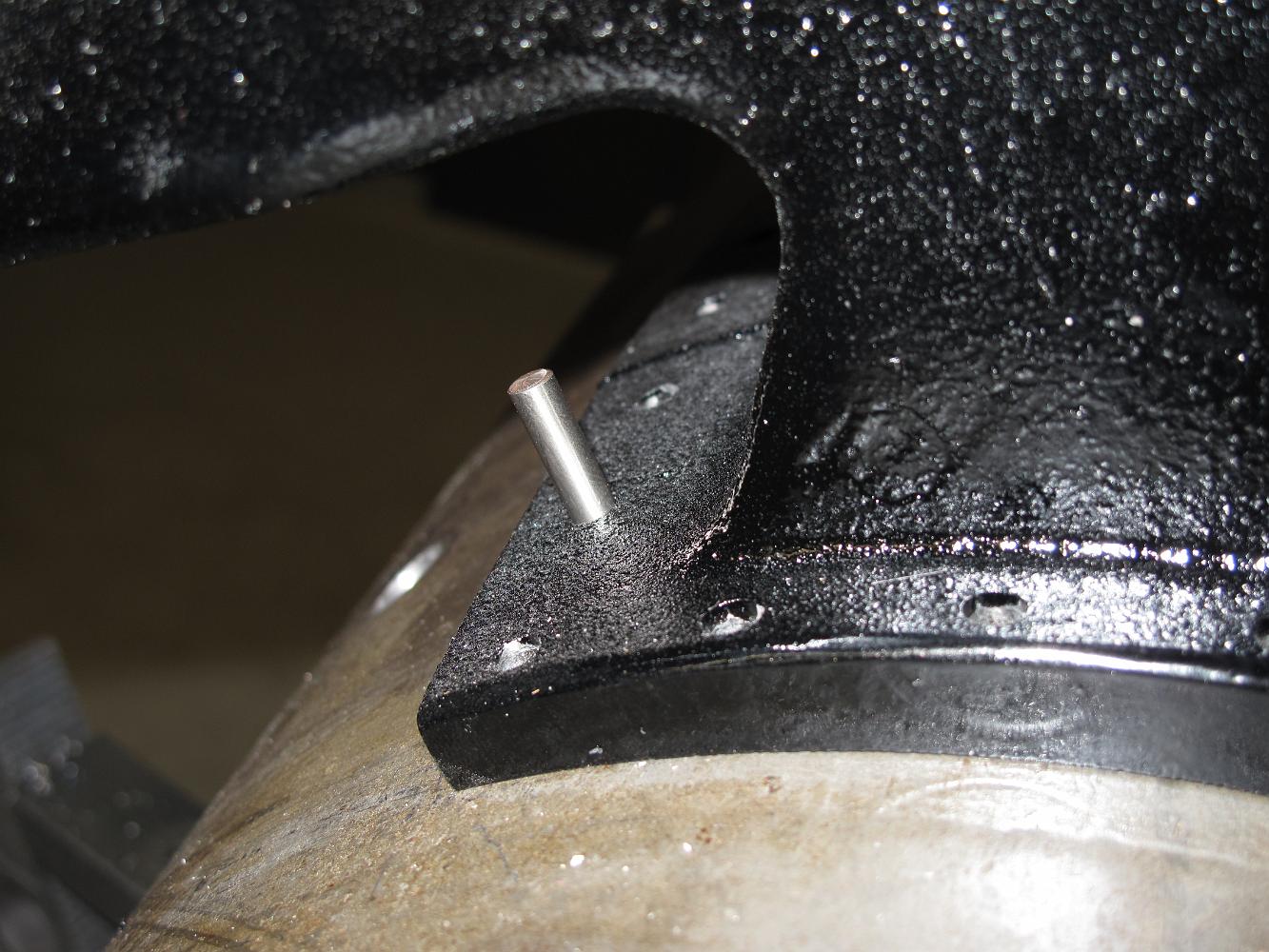

The transfer punch. For these holes under the cylinders, we put a piece of stout steel bar on the punch and the other end on the table. Using a 3 lbs. hammer, quickly strike the steel bar as close to the punch as possible, transferring the center mark.
