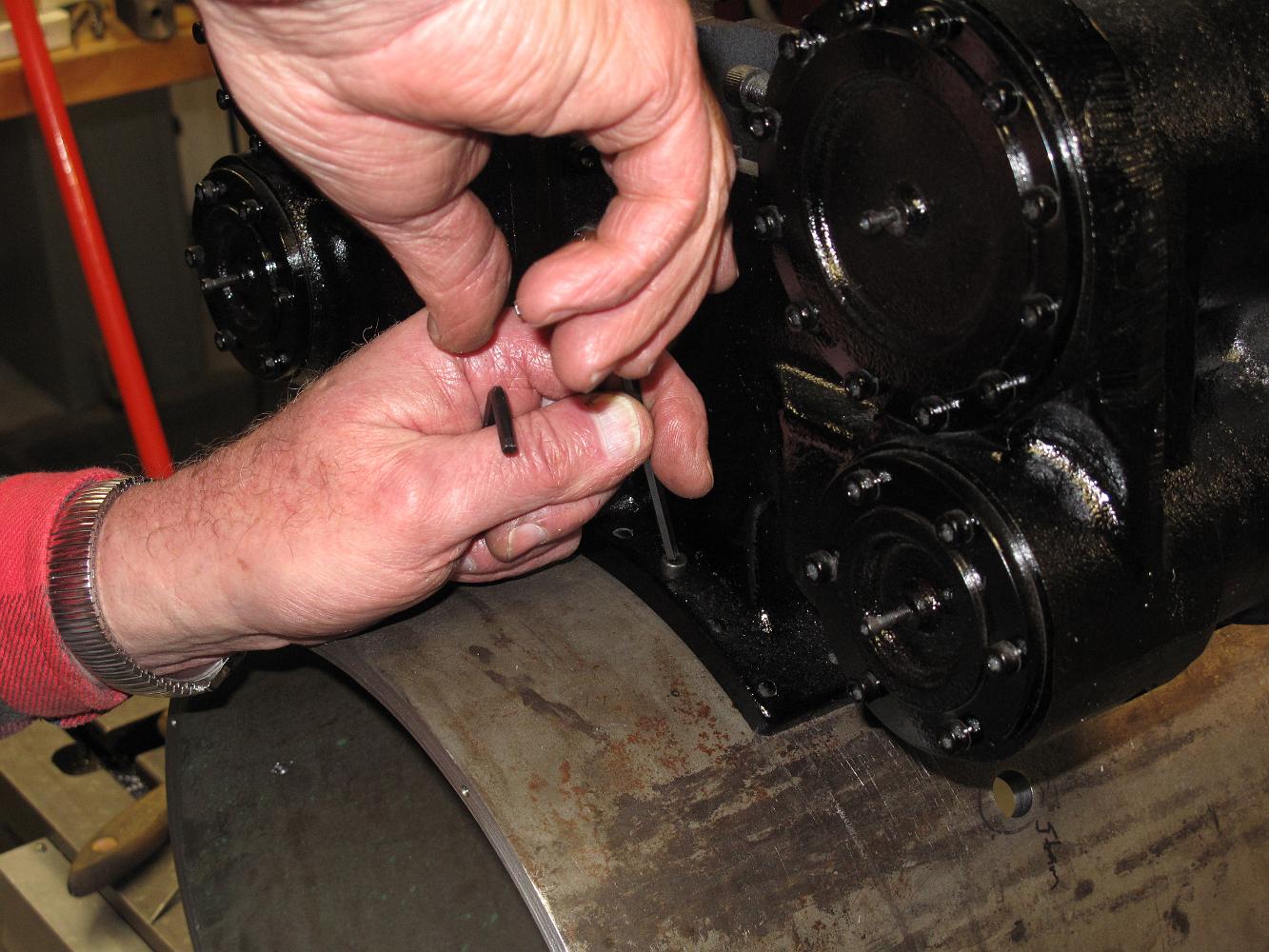

With two holes drilled and tapped, we put temporary bolts in to hold the cylinders to the shell so we can punch-mark the rest of the holes, insuring the cylinders do not move during the punching process.
