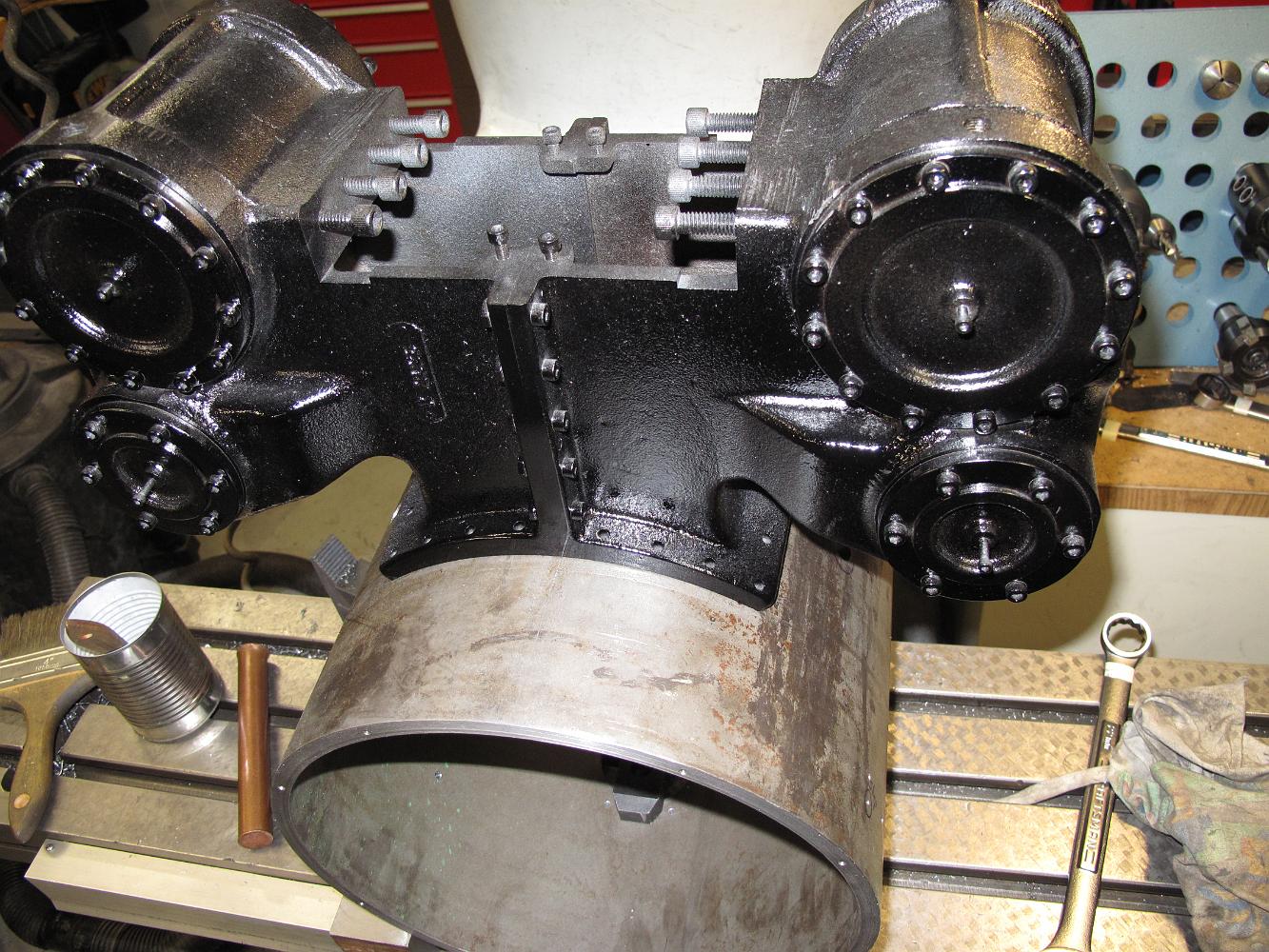

28-Feb-09 The painted cylinder saddle is brought down from the cold garage and into the shop to match drill it to the smokebox shell. We have scribed a center line on the shell to match the casting halves joint, and another line where the center of the front row of bolts should go to position the saddle front-to-back properly.
