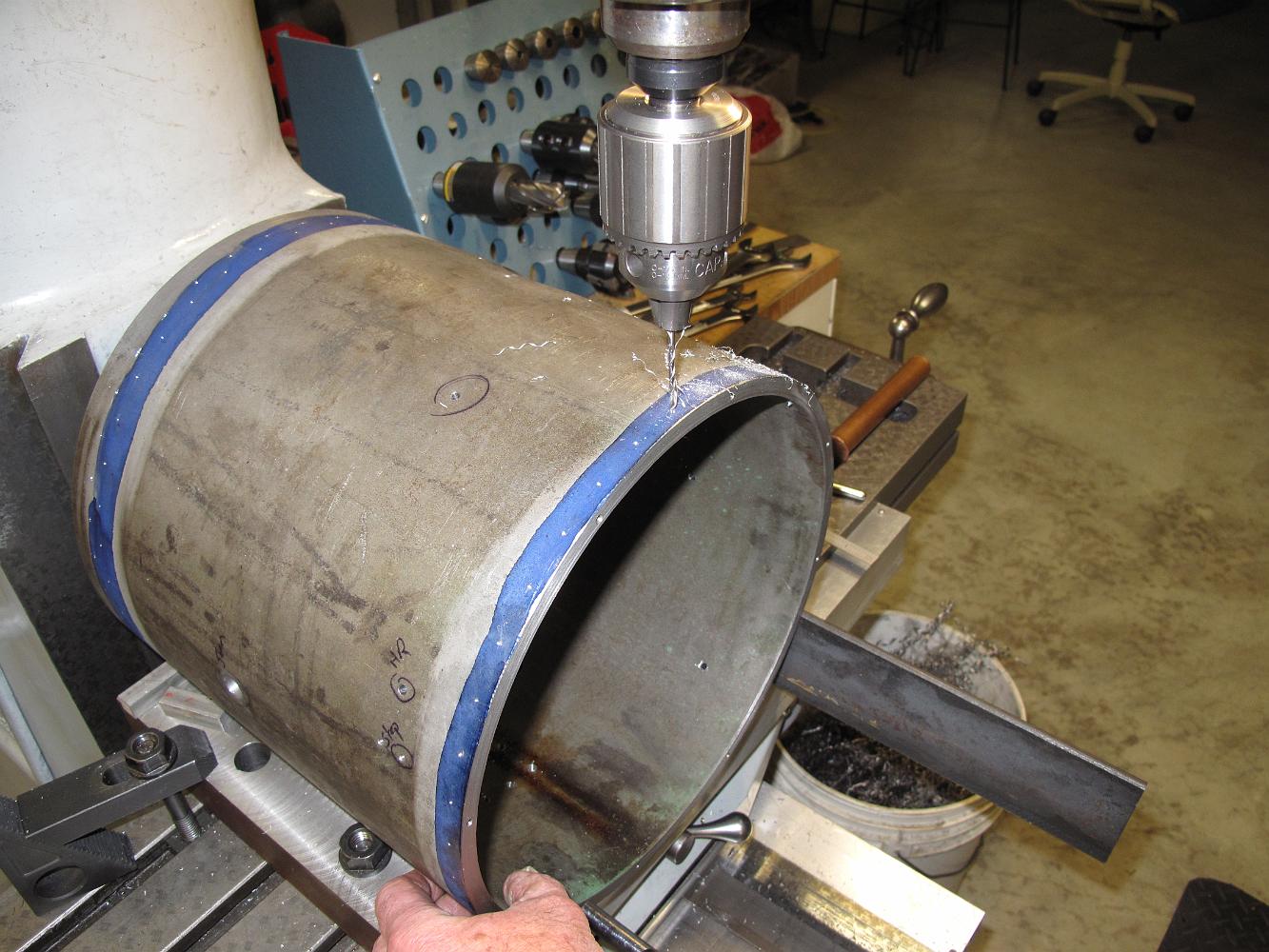

We have not removed the alignment block (left) from the table since drilling the other holes in the shell, so we just roll the shell around to line up the punch mark and then drill.
