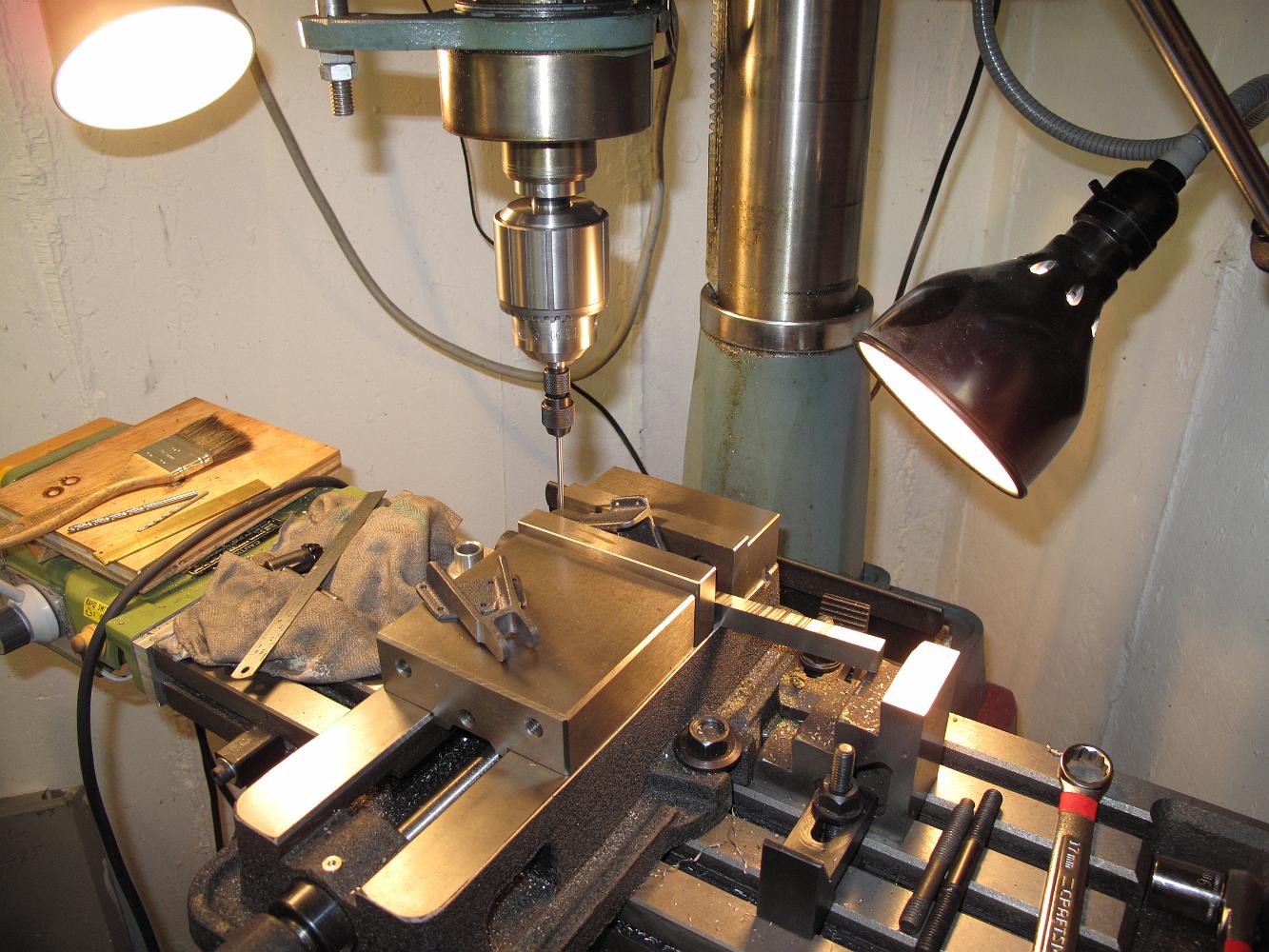

The convenience of a second machine in the shop. Without disturbing the setup in the big mill, we use the mill-drill to drill the front cover hinges, relying on a parallel and the flat surface of the casting for alignment.
