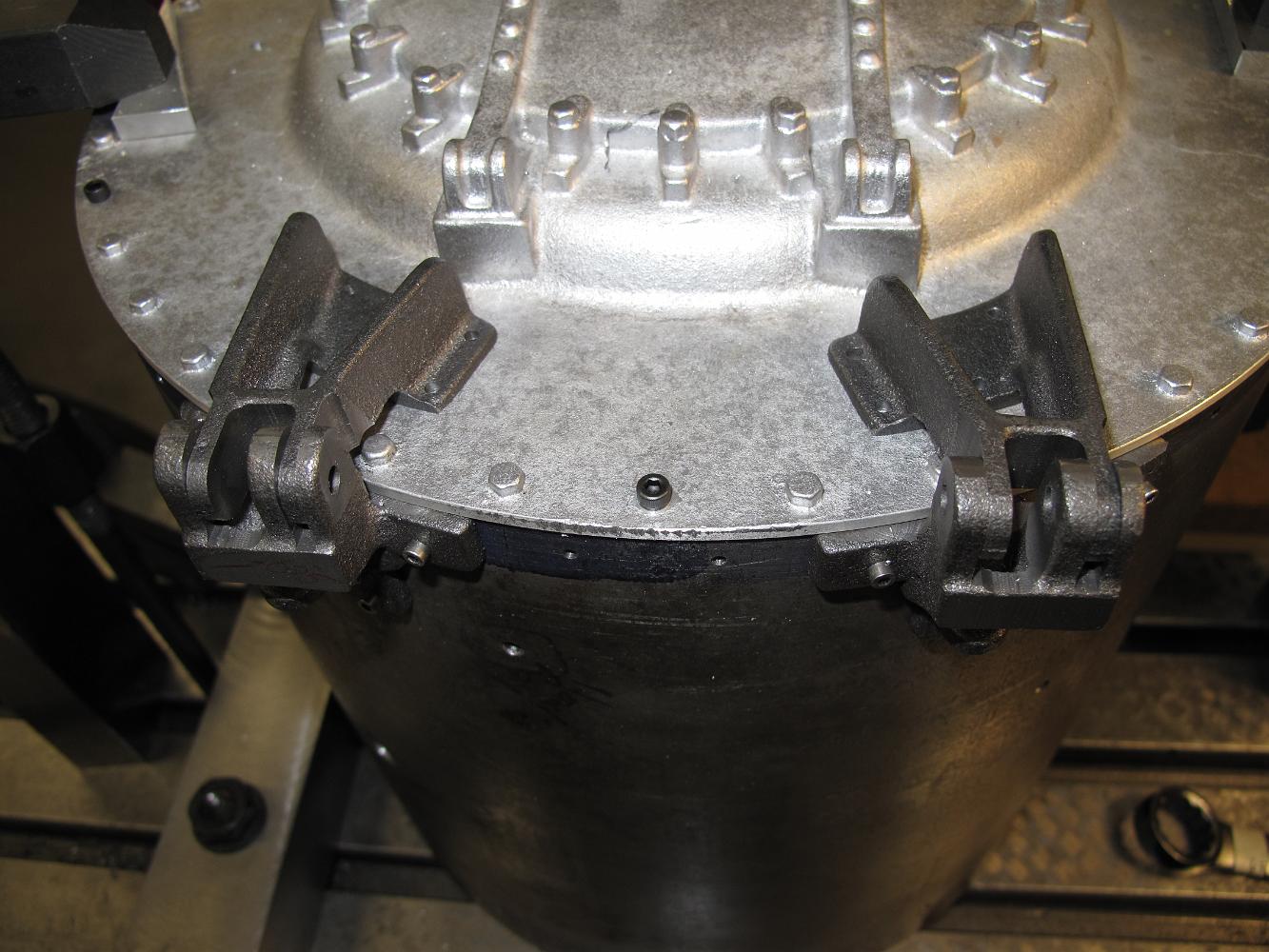

6-May-09 With the hinge pin holes drilled in the shell hinges, we set the front cover hinges in place and using a transfer punch mark where they should be drilled. You can also see in this picture the socket-head screw we put between the two hinges. Because our shell hinges did not end up exactly where the print calls for them to be, our front cover hinges actually cover the two front bolt holes, rendering them ineffective. Our solution was to fill the holes with dummy bolts like the rest of the front cover has and just put one new one in the shell.
