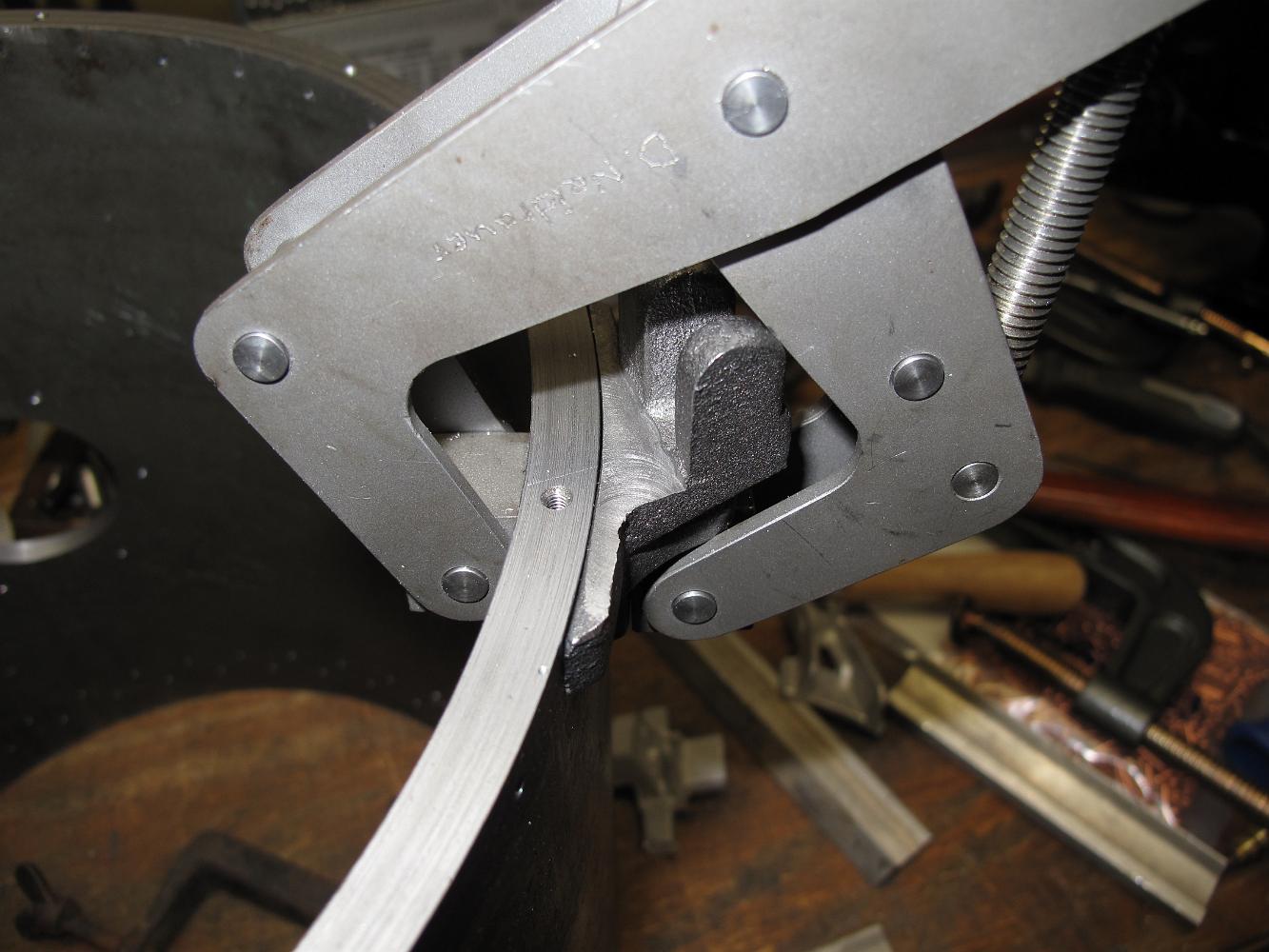

Another clamping conundrum, how to hold the bracket to the shell to match drill the shell holes to the bracket.
