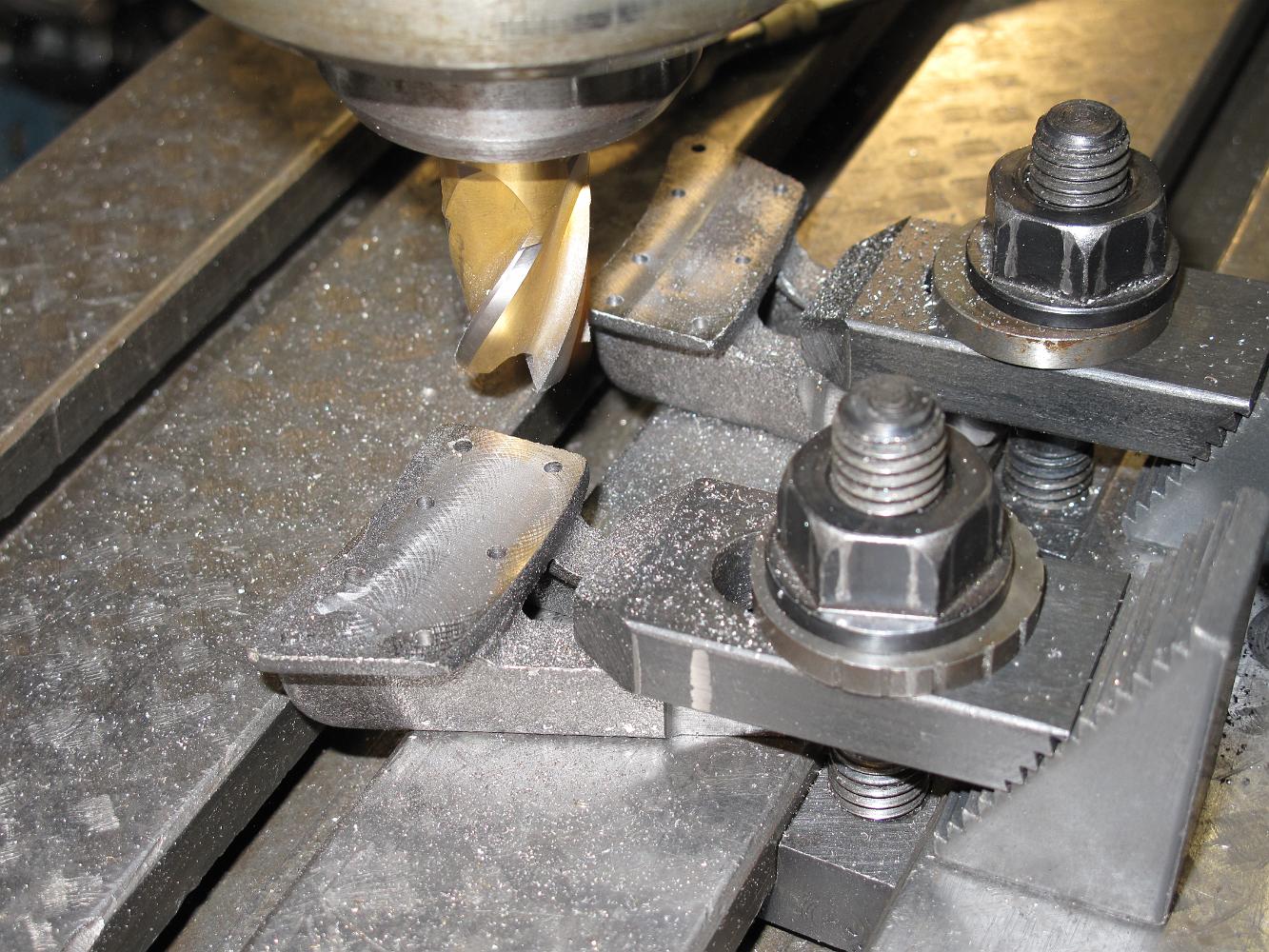

Using a resharpened carbide bit (the only way I can afford carbide cutters are by getting used ones) we oh so gently cut the back of the hinges. After a single pass we could see the hardened parts of the hinge which tore up the drill bits earlier.
