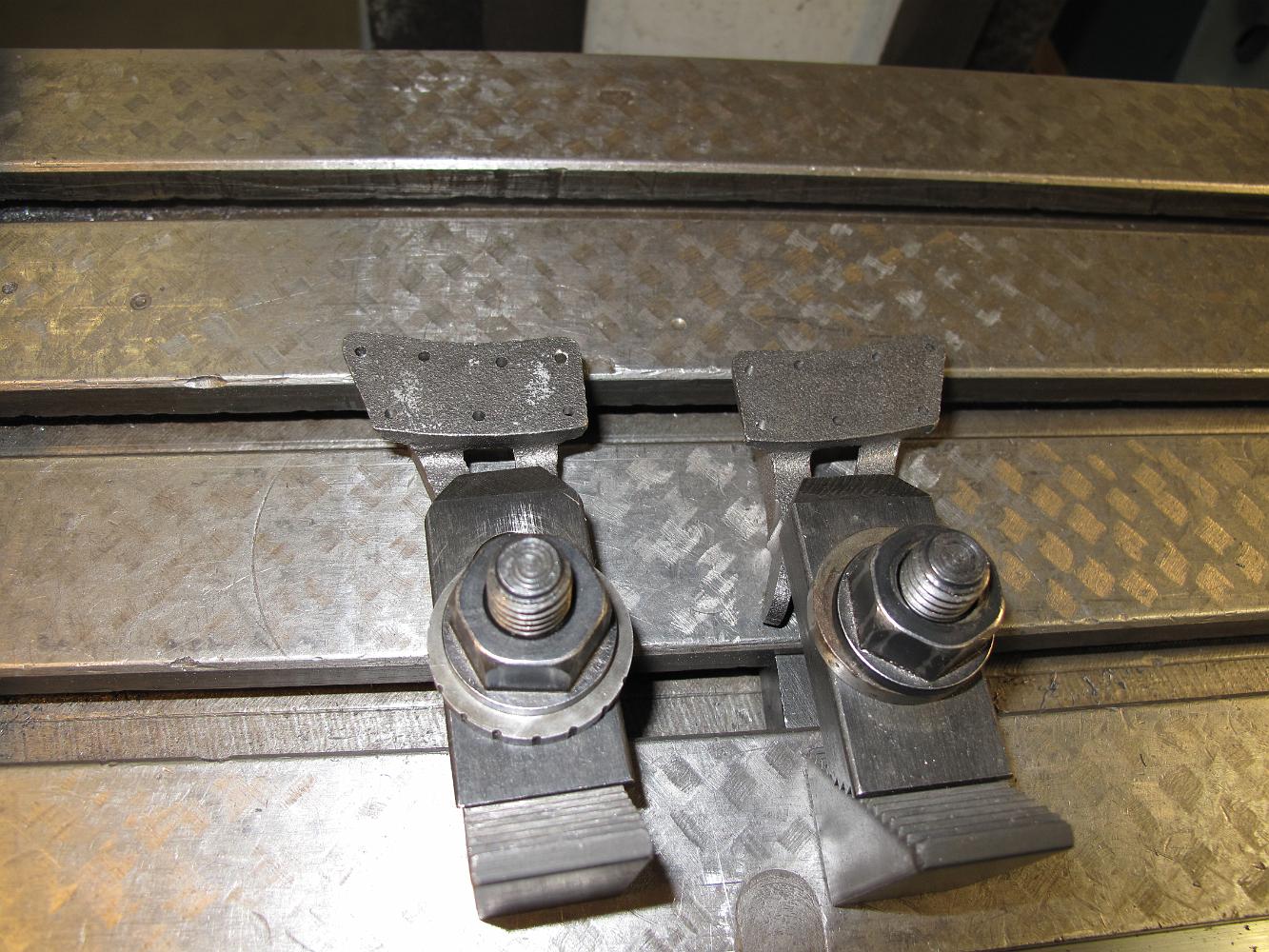

We decided to lower the front hinges to make it line up better with our thicker front and the shell hinges. Here they are clamped to the table.
