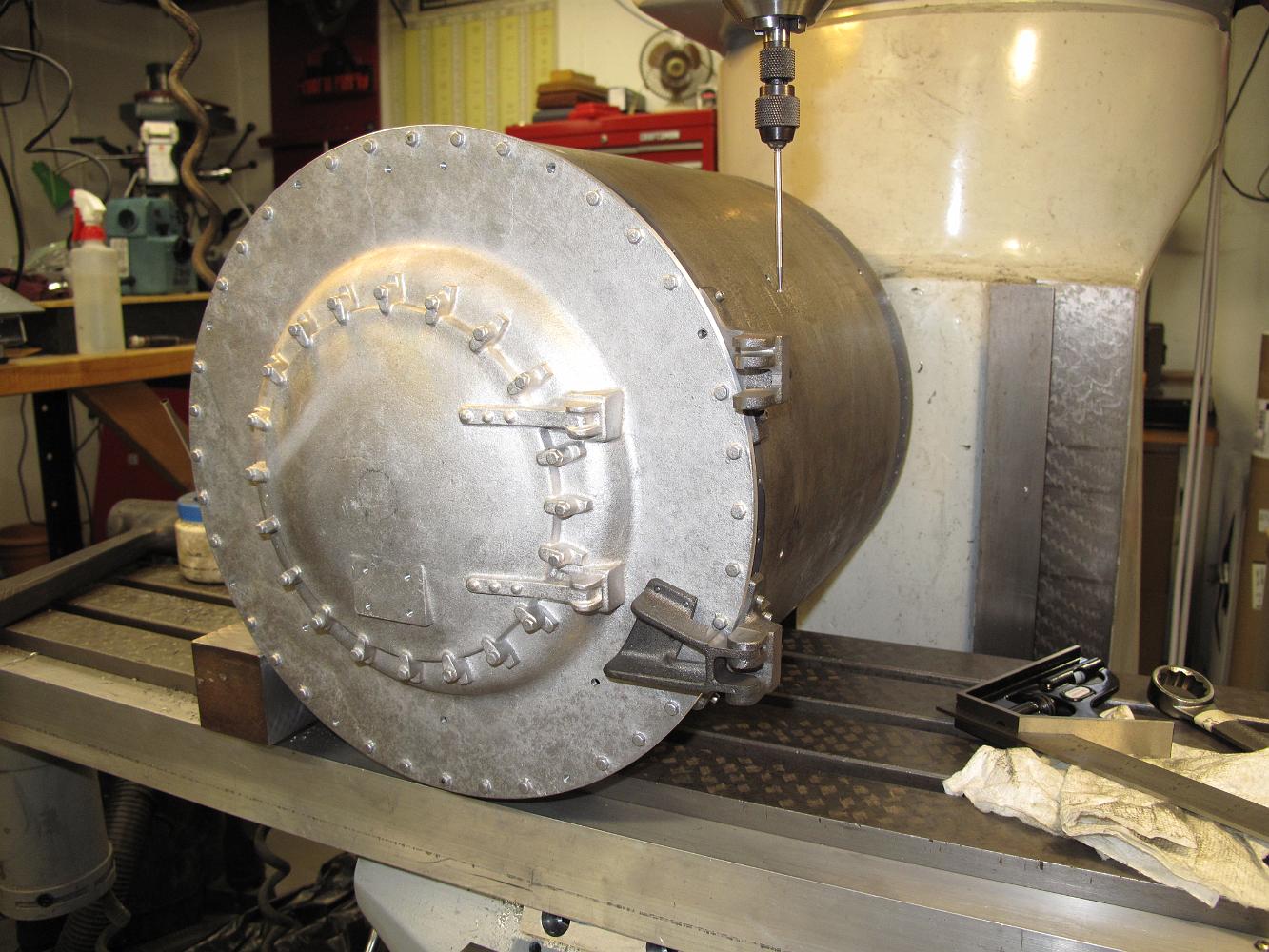

Using the milled surfaces for reference, we bolt the shell to the table and align it to vertical using the combination square. It is a pain clamping the shell down (on the inside), it rolls a little each time we tighten the bolt.
