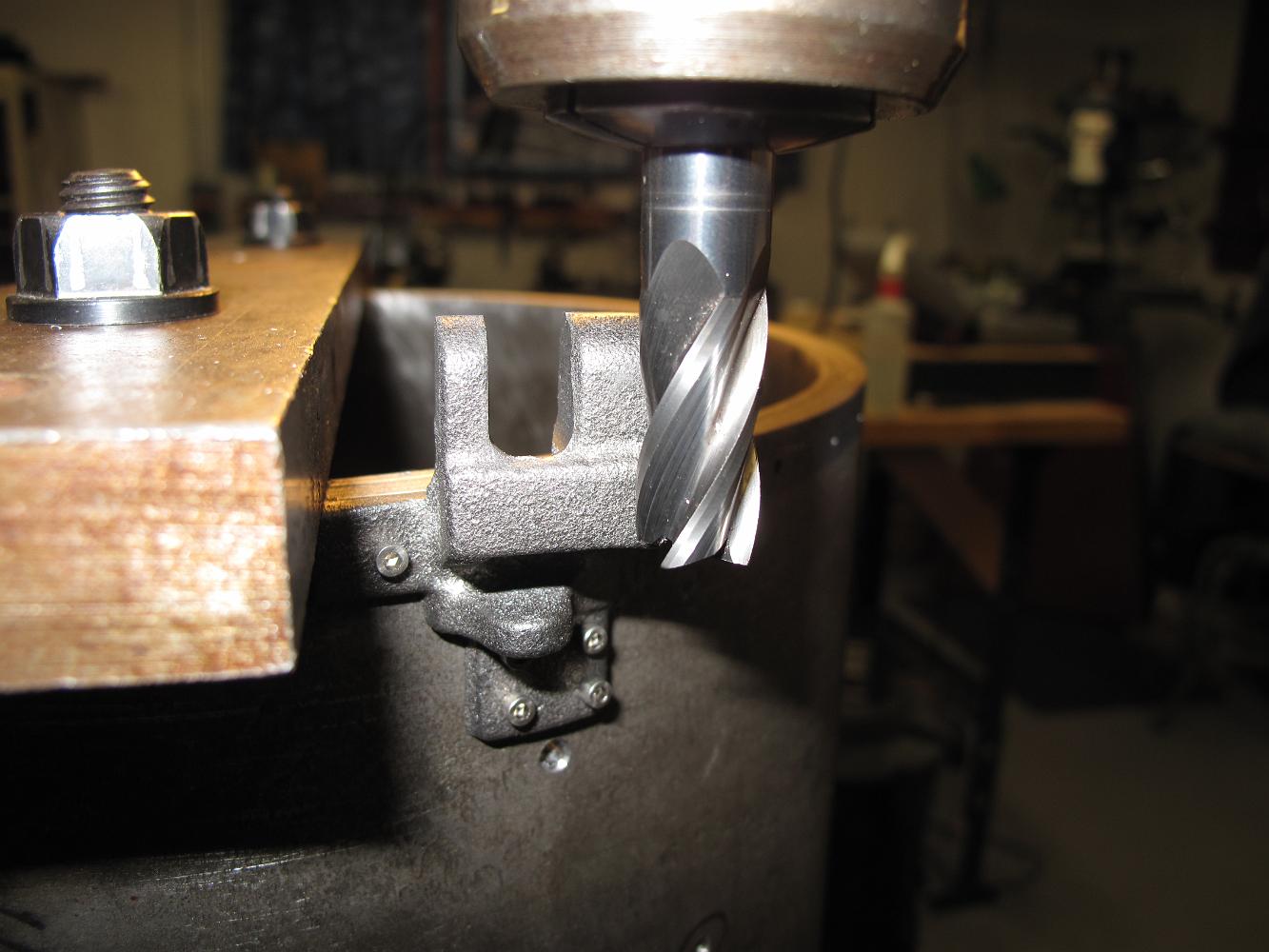

Using a larger ball-end mill, we finish the lower hinge support. We also skim the outside of the hinge to get a vertical reference surface.
