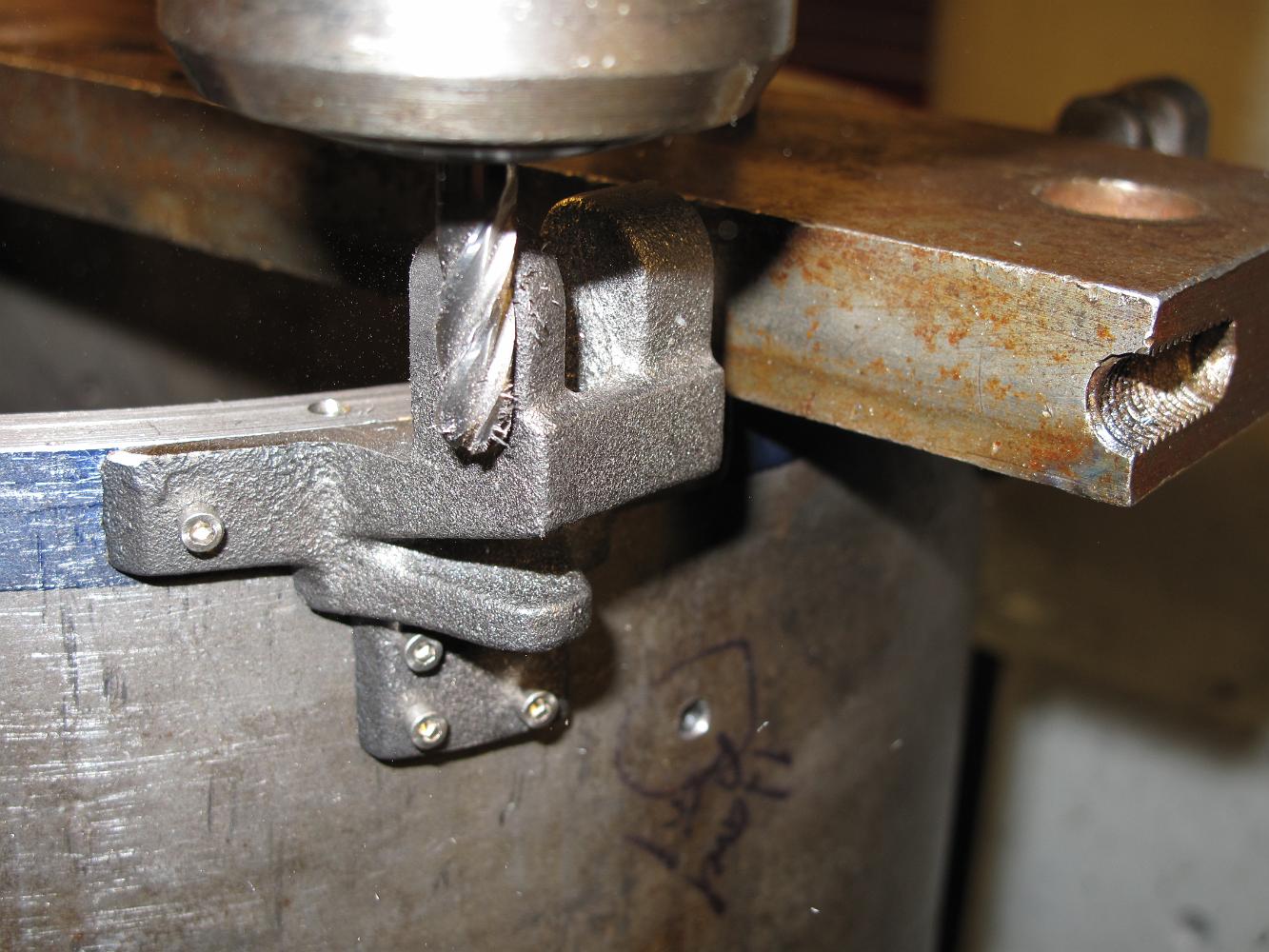

1-Apr-09 With the shell hinges temporarily bolted on and the smokebox shell held down on the table vertically, we use a carbide ball-end mill to cut the bearing surfaces on the hinges.
