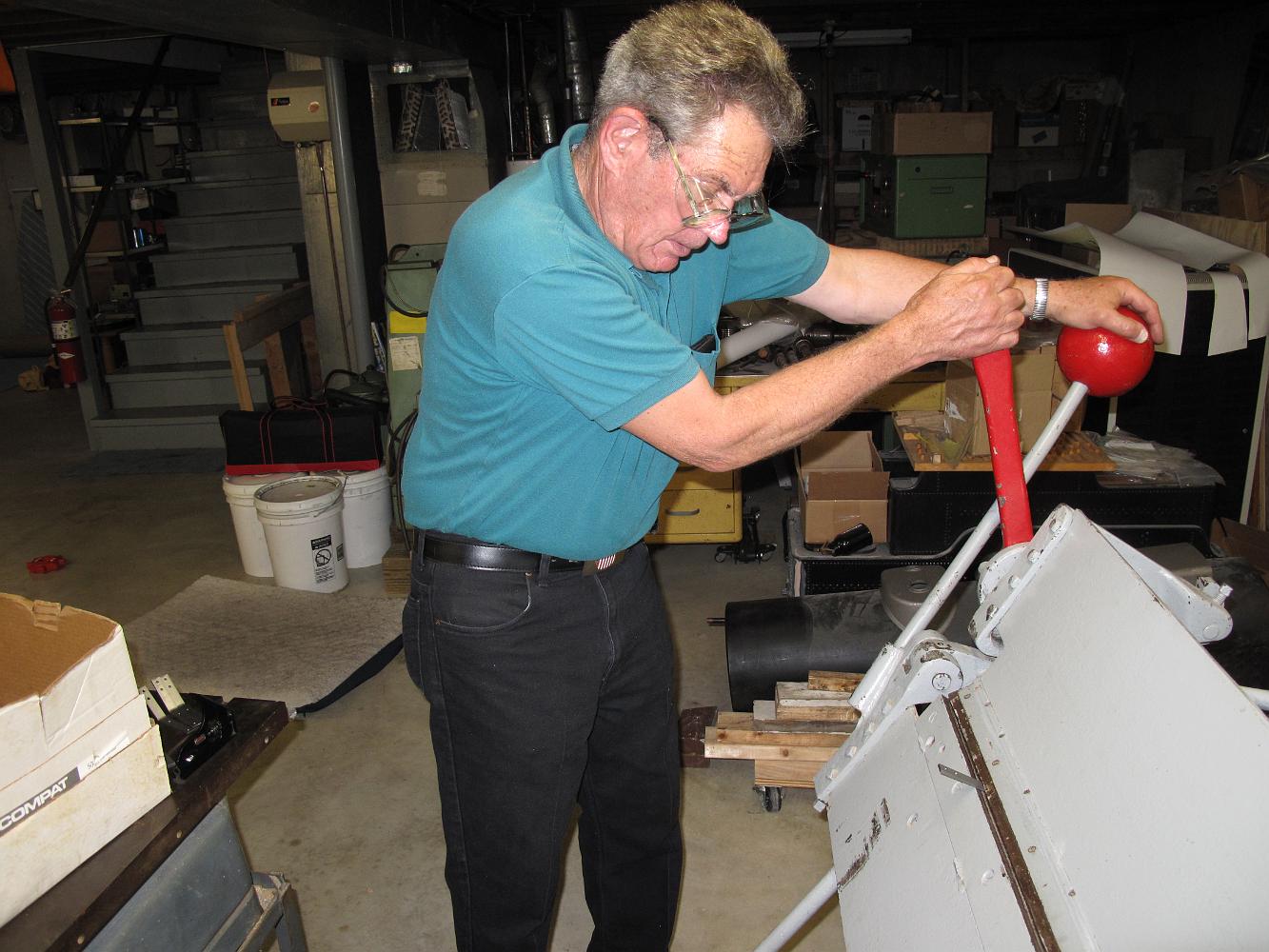

With the holes drilled in the bracket, the old box brake is put to service for two bends each bracket has on it. He is actually bending the 3/16" cold-rolled stell part with his left hand (on the ball), and holding the clamping head down with his right.
