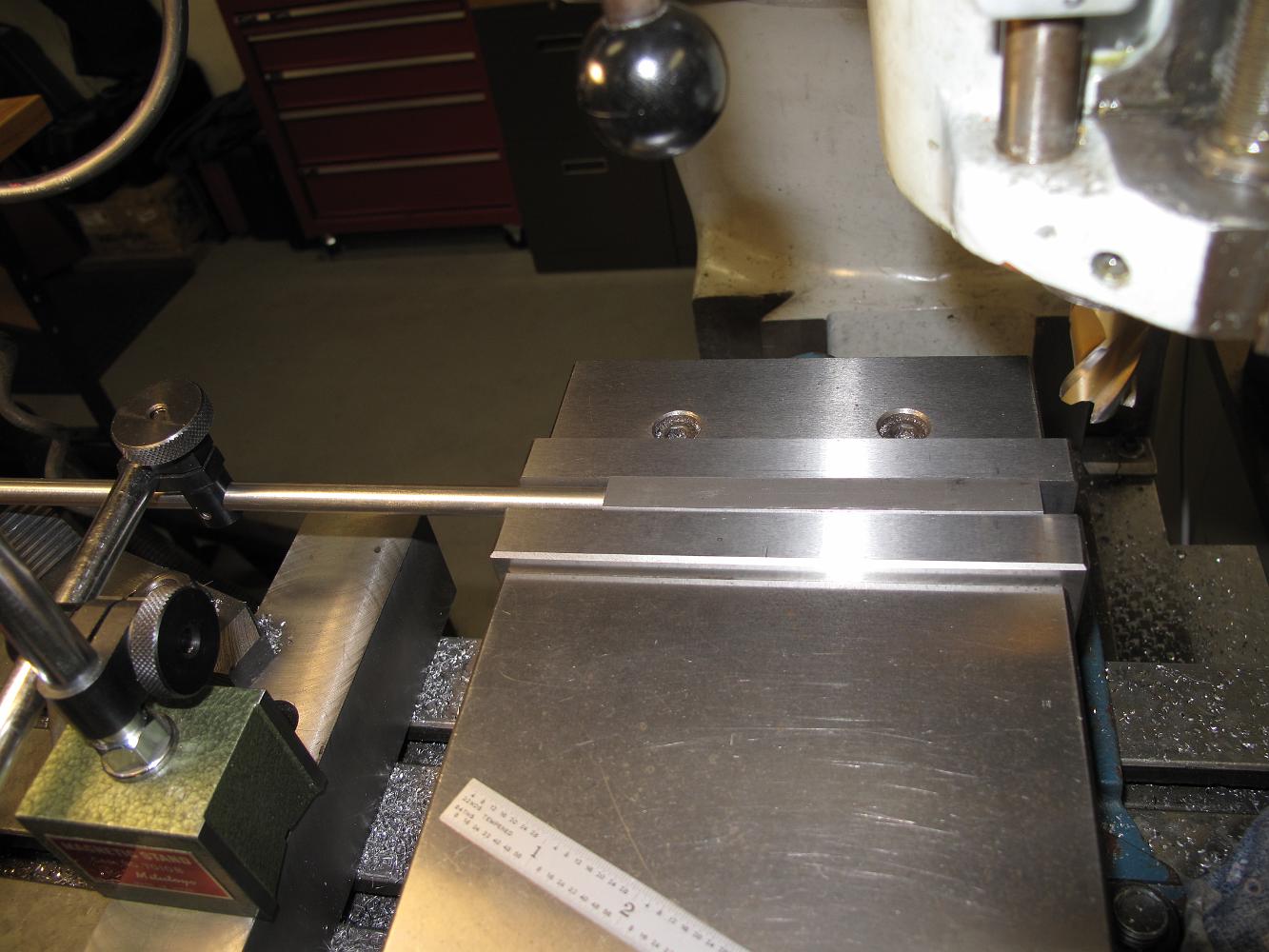

10-June-09 We start on the smokebox running board brackets. Bill has machined four pieces of stock to size and has stop set up for in the vice to make the identical pieces. This allows him to put the next piece in the vice and not have to re-indicate the location. Just clamp and re-use the same numbers on the dial!
